DRO Digital Display Meter

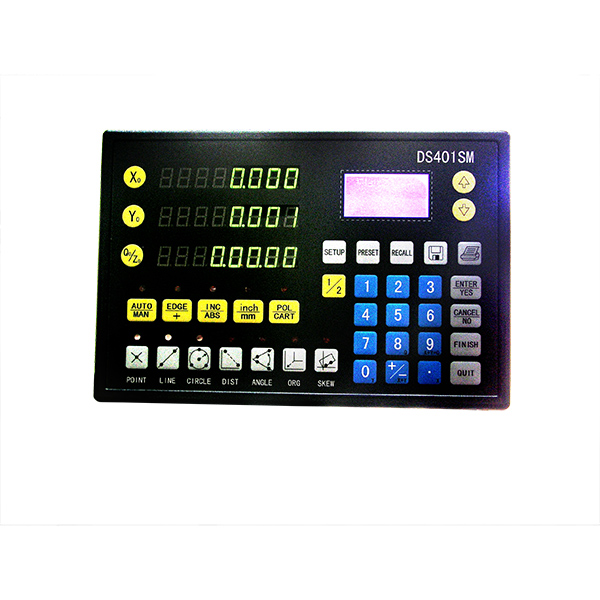

DS401SM is suitable for the digital linear measuring system and the video measuring system, for conducting analysis and processing on two-dimensional data; Widely used in the application of projectors, toolmaker's microscope and two-dimensional measuring instruments. '
It is used for the measurement, setup and structure of graphic elements of points, lines, circles, angles, distances etc...
DS401SM can put the coordinate right and coordinate horizontal movement. Thus it is convenient for putting the workpiece right and reducing the adjustment time.
RS232 output function, conducting communications with the computer by way of the compressed BCD code.
Multiple coordinate display forms: Display of polar coordinates, rectangular coordinates, INC coordinates and ABC coordinates; Display of Metric and Inch Systems.
Linear compensation or sector compensation may be made for the linear scale.
Z-axis may be connected with the linear scale or the rotary encoder( angle display).
100 temporary storage elements and 100 permanent storage elements.
Number of input axes: Three axes of X, Y and Z/Q, with minimum resolution of 0.001mm.
Input waveforms: TTL square waves
Input voltage: AC 110V~240V, 50Hz/60Hz
Overall Size: 290× 195× 80 (mm)
