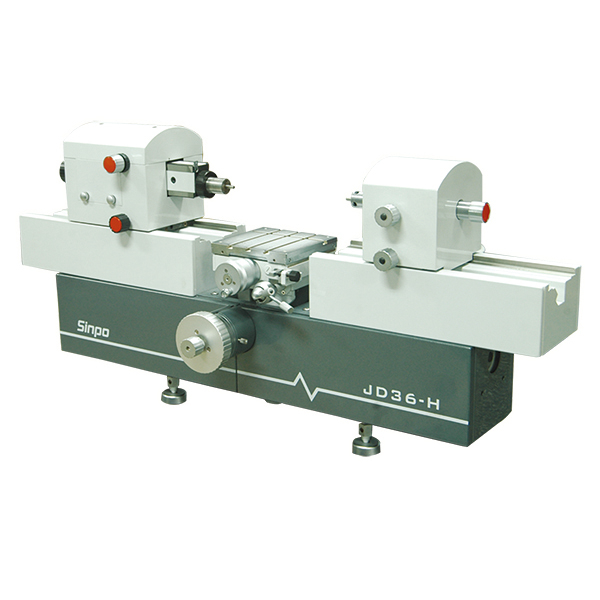

JD36/JD36H
You are here: Home » Products » Length Measuring Machine » JD36/JD36H

JD36/JD36H

Feature
The base is high quality cast iron and is aging for long time by nature so as to have good stability.
The measuring main axis adopts optimum square design to assure the stability of moving performance.
It has powerful optional accessories to satisfy different measuring requirements
The grating illuminating system adopts infrared illuminating device with low voltage, small current and long life as light sources.
The instrument adopt high precision measuring system, which conforms to the Abbe principle and has high measuring precision.
JD36H imported grating system and subdivision card have high precision and reliable stability.
JD36H The function is powerful by connecting to computer, which can rectify the measuring error caused by indicating value and temperature variation. And it has the function for automatically find reversal point.

Quantity:
  • High Precision Universal Metroscope
  • High Precision Universal Metroscope
JD36 JD36H Hight Precision Universal Metroscope

Feature
The base is high quality cast iron and is aging for long time by nature so as to have good stability.
The measuring main axis adopts optimum square design to assure the stability of moving performance.
It has powerful optional accessories to satisfy different measuring requirements
The grating illuminating system adopts infrared illuminating device with low voltage, small current and long life as light sources.
The instrument adopt high precision measuring system, which conforms to the Abbe principle and has high measuring precision.
JD36H imported grating system and subdivision card have high precision and reliable stability.
JD36H The function is powerful by connecting to computer, which can rectify the measuring error caused by indicating value and temperature variation. And it has the function for automatically find reversal point.

Technical Parameters
Measuring range (mm)
External dimension: A Direct measurement 0~100
B Differential measurement 0~750
Internal dimension:
With small measuring yokes (depth of penetration up to 12mm, maximum wall thickness 50mm ) 10~480
With large measuring yokes (depth of penetration up to 50mm, maximum wall thickness 85mm) 30~450
Measurement with electric equipment:
With electric measuring yoke 1~60
With universal measuring yoke 14~112
Digital display: 0.1μ M
Accuracy of the instrument in case of temperature (20 centigrade ± 0.2 centigrade)
JD36H: External direct measurement: 0.2μ M
Internal measurement suerior to 0.6μ M
JD36: External direct measurement: 0.3μ M
Internal measurement suerior to 0.7μ M
Thread measurement
Measuring the internal pitch diameter:
With small measuring yoke (thread small diameter 13~30)
With large measuring yoke (thread small diameter 31~(70-wallthickness)*2)
Pitch of screws: 0.5~6
Measuring the external pitch diameter: Maximum value 200
Measuring Force: 0, 1.5, 2.5N
Variability of the displaying value
JD36H a. External measurement 2σ ≤ 0.1μ M
B. Internal measurement 2σ ≤ 0.3μ M
JD36 a. External measurement 2σ ≤ 0.2μ M
B. Internal measurement 2σ ≤ 0.4μ M
Universal worktable:
Mounting area (mm): 160× 160 approximately
Adjusting range of height (mm): 0~100
Transverse travel: 25mm
Tilting rage around Y axis ± 3°
Worktable rotation ± 4°
Load capacity: 10kg
Combination dimension of internal diameter contact tip: φ 6H7
Combination external dimension of measuring rod with contact tip: φ 6g6
Instrument dimension (mm): L × W × H=1060× 390× 450
Net weight of the instrument: 170kg
ModelJD36JD36H
Measurement range (mm)External sizedirect measurement0~1000~100
Differential measurement0~7500~750
Internal sizeWith small measuring yoke (depth of penetration up to 12mm, maximum wall thickness 50mm10~48010~480
With largel measuring yoke (depth of penetration up to 50mm, maximum wall thickness 85mm30~45030~450
Measurement with electric equipmentwith electric measuring yoke1~601~60
with universal measuring yoke14~11214~112
Digital display0.1μm0.1μm
AccuracyExternal direct measurement0.3μm0.2μm
Internal direct measurement 0.7μm0.6μm
Thread measurementMeasuring the internal pitch diameterWith small measuring yoke thread small diameter 13~30thread small diameter 13~30
With large measuring yoke (thread small diameter 31~(70-wallthickness)×2)(thread small diameter 31~(70-wallthickness)×2)
Pitch of screw0.5~60.5~6
Measuring the external pitch diameterMax value 200Max value 200
Measuring force
0N    1.5N   2.5N0N    1.5N   2.5N
Variability of the instrument display valueWhile measuring the external size2σ≤0.2μm2σ≤0.1μm
while measuring the internal size2σ≤0.4μm2σ≤0.3μm
Universal worktableMounting area approximately160mm×160mm160mm×160mm
Adjusting range of height0~100mm0~100mm
Transverse travel25mm25mm
Tilting rage around Y axis±3°±3°
Rotation
±4°±4°
Load capacity10kg10kg
Combination dimension of internal diameter contact tipφ6H7φ6H7
combination external dimension of measuring rod with contact tipφ6g6φ6g6
Overall size (mm)1060×390×4501060×390×450
Weight170kg170kg


The base is high quality cast iron and is aging for long time by nature so as to have good stability.
The measuring main axis adopts optimum square design to assure the stability of moving performance.
It has powerful optional accessories to satisfy different measuring requirements
The grating illuminating system adopts infrared illuminating device with low voltage, small current and long life as light sources.
The instrument adopt high precision measuring system, which conforms to the Abbe principle and has high measuring precision.
JD36H imported grating system and subdivision card have high precision and reliable stability.
JD36H The function is powerful by connecting to computer, which can rectify the measuring error caused by indicating value and temperature variation. And it has the function for automatically find reversal point.


High Precision Universal Metroscope

The base is high quality cast iron and is aging for long time by nature so as to have good stability.
The measuring main axis adopts optimum square design to assure the stability of moving performance.
It has powerful optional accessories to satisfy different measuring requirements
The grating illuminating system adopts infrared illuminating device with low voltage, small current and long life as light sources.
The instrument adopt high precision measuring system, which conforms to the Abbe principle and has high measuring precision.
JD36H imported grating system and subdivision card have high precision and reliable stability.
JD36H The function is powerful by connecting to computer, which can rectify the measuring error caused by indicating value and temperature variation. And it has the function for automatically find reversal point.

Technical Parameters
Measuring range (mm)
External dimension: A Direct measurement 0~100
B Differential measurement 0~750
Internal dimension:
With small measuring yokes (depth of penetration up to 12mm, maximum wall thickness 50mm ) 10~480
With large measuring yokes (depth of penetration up to 50mm, maximum wall thickness 85mm) 30~450
Measurement with electric equipment:
With electric measuring yoke 1~60
With universal measuring yoke 14~112
Digital display: 0.1μ M
Accuracy of the instrument in case of temperature (20 centigrade ± 0.2 centigrade)
JD36H: External direct measurement: 0.2μ M
Internal measurement suerior to 0.6μ M
JD36: External direct measurement: 0.3μ M
Internal measurement suerior to 0.7μ M
Thread measurement
Measuring the internal pitch diameter:
With small measuring yoke (thread small diameter 13~30)
With large measuring yoke (thread small diameter 31~(70-wallthickness)*2)
Pitch of screws: 0.5~6
Measuring the external pitch diameter: Maximum value 200
Measuring Force: 0, 1.5, 2.5N
Variability of the displaying value
JD36H a. External measurement 2σ ≤ 0.1μ M
B. Internal measurement 2σ ≤ 0.3μ M
JD36 a. External measurement 2σ ≤ 0.2μ M
B. Internal measurement 2σ ≤ 0.4μ M
Universal worktable:
Mounting area (mm): 160× 160 approximately
Adjusting range of height (mm): 0~100
Transverse travel: 25mm
Tilting rage around Y axis ± 3°
Worktable rotation ± 4°
Load capacity: 10kg
Combination dimension of internal diameter contact tip: φ 6H7
Combination external dimension of measuring rod with contact tip: φ 6g6
Instrument dimension (mm): L × W × H=1060× 390× 450
Net weight of the instrument: 170kg
