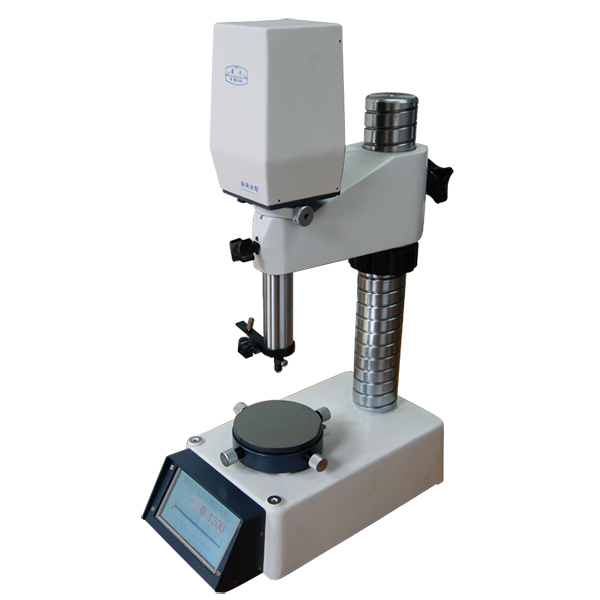

JD3A digital vertical optimeter adopts comparison method to measure length dimensions of all kinds measured parts. It can calibrate gauge block, various gauge, block, axle, plate, ball shape and dimensions of different machinery parts, good universal property. It's common optical measuring instrument in national quality inspection departments, measuring rooms, calibration stations in production industry.
Typical measuring objectives:
Calibration gauge block, pillar gauge, thickness of template, pitch diameter of outside screw, diameter of cylindricality and ball parts.
Vertical Projection Optimeter
Adopt Buck LED light source, low heat emission in optical and electrical components to reduce influence from heat, in the mean time realize energy saving.
Combination of traditional optical lever theory and advanced CCD digital image processing technology, high resolution, high accuracy, stability in measuring indication.
LED Digital screen installed very close to measuring area, the operator can observe measuring location and measuring value together, humanization design.
Large range of indication, even under the condition that big difference between measured workpiece and standard workpiece, It could get accurate measuring results.
Measurement indication shown in digits on LED, convenient to read, comfortable to use.
Simulation cursor is shown under LED digits, get clear and definite idea about movement of measuring head, Visual movement.
|Range of measurement (mm)||0~180|
|Indication error||± (0.1+0.001A)μm|
|Worktable||Circular plane worktable, Circular ribbed worktable, square ribbed worktable, Measuring cape Underneath type worktable, Small three points|
|Measuring cap||Sphere measuring cap, blade measuring cap, small plane measuring cap, plane measuring cap, big plane measuring cap|
