JDS Series
You are here: Home » Products » Length Measuring Machine » JDS Series

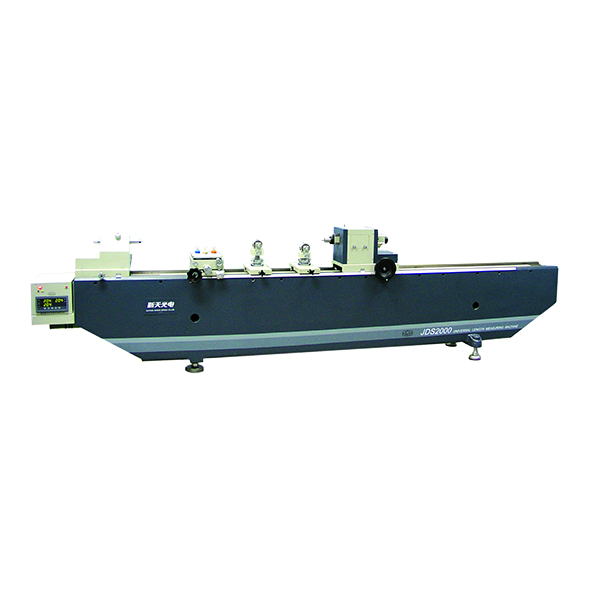

JDS Series

Quantity:
  • Raster Length Measuring Machine
  • Raster Length Measuring Machine
  • Used to measure external (0-6000mm) and internal (30-5900mm) sizes of parts with high accuracy. Three raster measuring types with different range available It can measure axis, hole, plug, gauge and ring gauge, calipers, length bar and low grade measuring block and mid-diameter of internal and external thread, thread plug/ring gauge etc.

Simple structure instead of the complex optical system.
The realization of raster digital display makes it easy to use, the operation visual and convenient.
Software correction instead of manual point-by-point revising the decimeter scale, makes calibration convenient and fast.
Imported precision raster is used as measuring element, with satisfactory stability, lower heat value, corrosion resistance and contamination resistance.
Expansion coefficient of raster material is as the same as that of steel, having little influence by ambient temperature.
With inclination- Measuring sensor, software achieves real time compensation of Abbe error.
With temperature sensor, software achieves real time compensation of temperature effects.

Raster Length Measuring Machine
Feature
Simple structure instead of the complex optical system.
The realization of raster digital display makes it easy to use, the operation visual and convenient.
Software correction instead of manual point-by-point revising the decimeter scale, makes calibration convenient and fast.
Imported precision raster is used as measuring element, with satisfactory stability, lower heat value, corrosion resistance and contamination resistance.
Expansion coefficient of raster material is as the same as that of steel, having little influence by ambient temperature.
With inclination- Measuring sensor, software achieves real time compensation of Abbe error.
With temperature sensor, software achieves real time compensation of temperature effects.

Technical Parameters
Measuring range (mm)
JDS1000 JDS2000 JDS3000
External sizes: 0~1000 0~2000 0~3000
Internal sizes: 30~90 30~1900 30~2900
Measurement of external thread MID-diameter: 0~140
Minimum division value: 0.0002mm
Accuracy of measurement: ± (0.5+L/200)μ M, of which, L=value measured, unit in mm
Maximum diameter gripped by the tailstock (mm)
When the length between 0~170, φ 140mm
When the length between 170~210, φ 130mm
V-type support
Adjustable range of height: >28mm
Diameter range of the supporting member: Up to φ 30mm
Support frame of the measuring block: It's length up to 1000mm
Working range of V-type iron: Maximum to φ 30mm
Requirement for ambient environment: Room temperature: 20 centigrade± 1 centigrade
Moving range of Abel measuring spindle: ± 25mm
Measurement of forces: 1.5N 2.5N
Fitting size for the measuring cap's internal diameter: φ 6H7
Size of outer diameter between the reference rod and the measuring cap's internal diameter: φ 6g6
Universal worktable (mm)
Vertical stroke: 0~70
Horizontal stroke: 0~40
Vertical floating stroke of horizontal position: 10
Rotation: >± 3°
Deflection: ± 3°
Division value of horizontal micro-drum: 0.01
Load capacity of the worktable: 10kg
Overall size of the instrument (mm)
JDS1000: 1980× 450× 750
JDS2000: 2980× 450× 800
JDS3000: 4000× 450× 850


ModelJDS1000JDS2000JDS3000
Measurement range (mm)External size0~10000~20000~3000
Internal size30~90030~190030~2900
Measurement of external thread mid-diameter (mm)0~1400~1400~140
Minimum division value0.0002mm0.0002mm0.0002mm
Readout errorsExternal size±(0.5+L/200)μm±(0.5+L/200)μm±(0.5+L/200)μm
Internal size


Measurement force
1.5N  2.5N1.5N  2.5N1.5N  2.5N
Moving range of Abel measuring spindle±25mm±25mm±25mm
Fitting size for measuring cap's internal diameterφ6H7φ6H7φ6H7
Size of outer diameter between the reference rod and the measuring cap's internal diameterφ6g6φ6g6φ6g6
Universal worktable (mm)Vertical stroke0~700~700~70
Horizontal stroke0~400~400~40
Vertical floating stroke of horizontal position101010
Rotation>±3°>±3°>±3°
Deflection>±3°>±3°>±3°
Division value of horizontal micro-drum0.010.010.01
Load capacity10kg10kg10kg
Maximum diameter gripped by the tailstock When the length between 0~170φ140mmφ140mmφ140mm
When the length between 170~210φ130mmφ130mmφ130mm
V-type supportAdjustable  range of height>28mm>28mm>28mm
Diameter range of  the supporting memberup to φ30mmup to φ30mmup to φ30mm
Support frame for the measuring blockIts length up to 1000mmIts length up to 1000mmIts length up to 1000mm
Working range of V-type ironMaximum to φ30mmMaximum to φ30mmMaximum to φ30mm
Ambient environment requirementRoom temperature20 centigrade±1 centigrade20 centigrade±1 centigrade20 centigrade±1 centigrade
Humidity≤60%≤60%≤60%
Overall size (mm)1980×450×7502980×450×8004000×450×850
