The instrument can test profile, section and surface shapes of various complex workpieces effectively, such as templates, punching pieces, cams, gears, forming cutters, mercerizes etc. It is widely used in workshops and measuring station of those industries: Machinery, instruments & meters, watches, moulds and electronics and so on.

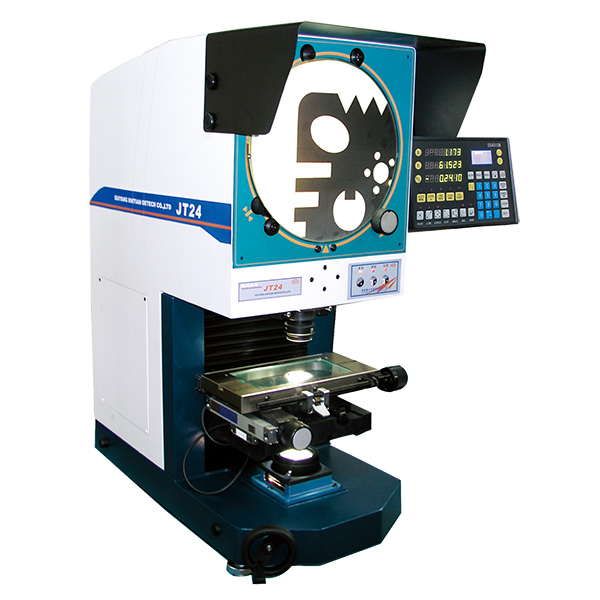

φ300 Horizontal Digital Measuring Projector
-With beautiful shape and convenient operation.
-Up and down system and workstage movements adopt imported V straight line guide, transmission
Is comfortable and convenient.
-Two illuminations systems ( high and low) can meet illumination requirements of different.
-Workpieces and materials image on screen is very clear and shapely.
-Reflection illumination adopts fiber-optic transmission, so it has the features of small-volume.
-High-brightness and easy-operation.
-High accuracy, good stability and reliability.
-Workstage is aluminum alloy material, so its weight is light.
-Digital readout system to display length and angle in digit.
-Screen diameter: Φ300mm
-Rotary range: 0~360°
-Rotary resolution: 1'
-Rotary angle accuracy: 4'
Table size(mm) X coordinate(mm) Y coordinate(mm) Z coordinate(mm)
326X150 200 80 100
-Accuracy of X. Y axis: (3+L/75)μm L unit: Mm
Magnification View-field on object(mm) Working distance(mm)
10X Φ30 75.201
20X Φ15 69.599
50X Φ6 26.990
100X Φ3 26.243
-Error of magnification 0.08%
Contour illumination: 24V, 150W halogen tungsten bulb
Surface illumination: 24V, 150W halogen tungsten bulb
-Overall size of instrument: Length X width X height (mm): 746 X 420 X 980mm
-Machine weight: 105KGS
|Resolution of the rotary angle||1′|
|Accuracy of the rotary angle||4′|
|Objective Magnification Power||10X 20X 50X 100X|
|Objective Visual Field||φ30mm φ15mm φ6mm φ3mm|
|Objective Working Distance||75.201mm 69.599mm 44.4mm 26.243mm|
|Error of magnification||0.08%|
|Range of X-coordinate (mm)||200mm|
|Range of Y-coordinate (mm)||80mm|
|Z -coordinate (Focusing)(mm)||0~100mm|
|Accuracy of Instrument||(3+L/75)μm|
|Transmission Lighting||12V 100W Halogen tungsten lamp|
|Reflecting Lighting||24V 150W Halogen tungsten lamp|
