JT25
You are here: Home » Products » Profile Projector » JT25

JT25

Quantity:
  • φ350 Horizontal Digital Measuring Projector
  • φ350 Horizontal Digital Measuring Projector

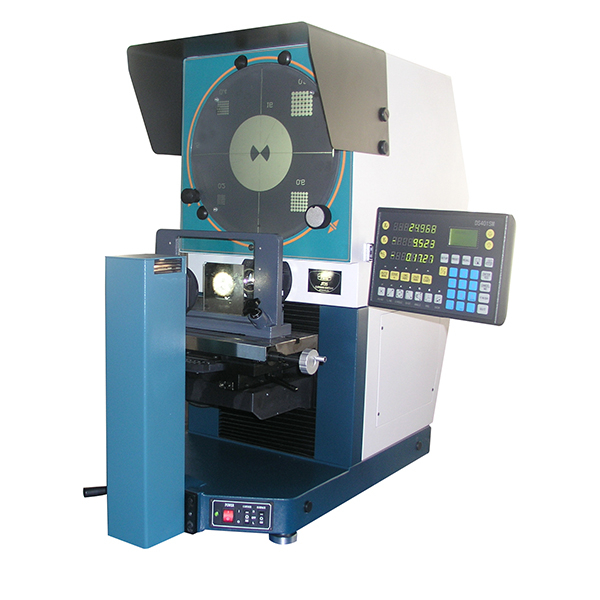

  • A horizontal profile projector with 350mm screen diameter, reverse image, standard 10X lens, external DS401SM or DS600 DRO. 20X, 50X and 100X lens are available for selection. Widely used to measure various workpieces such as template, punching part, cam, gear, cutter etc.. Travel is 200mm*80mm*150mm (X*Y*Z)

Usages:
The instrument can test effectively profile, section and surface shapes of various complex workpieces, such as templates, punching pieces, cams, gears, forming cutters, mercerizes etc. It is widely used in workshops and measuring station of those industries: Machinery, instruments & meters, watches, moulds and electronics and so on.

φ350 Horizontal Digital Measuring Projector
Features:
-Strong general-purpose property, beautiful shape and convenient operation.
-Up-down and workstage movements adopt imported V straight line guide, transmission is comfortable
And convenient.
-Two illuminations systems ( high and low) can meet illumination requirements of different
-Workpieces and materials
-Image of screen is very clear and shapely.
-Reflection illumination adopts fiber-optic transmission, so it has the features of small-volume,
-High-brightness and easy-operation.
-Its accuracy is very high, it also has a strong stability and reliability
-Worktable is make of aluminum alloy material, so its weight is very light
-Digital displayer uses digits on to display length and angle

Technical Parameters
-Screen diameter: Φ350mm
-Rotary range: 0 deg-360deg
-Rotary resolution: 1'
-Rotary angle accuracy: 4'
-Workstage:
Table size X coordinate(mm) Y coordinate(mm) Z coordinate(mm)
400 X 150 250 80(focus) 150

-Resolution: 0.001mm
-Accuracy of X. Y axis: (3+L/75)μm L unit: Mm
-Objectives:
Magnification View-field on object(mm) Working distance(mm)
10X Φ35 88.376
20X Φ17.5 81.375
50X Φ7 54
100X Φ3.5 44.9

-Error of magnification 0.08%
-Illumination:
Contour illumination: 24V, 150W halogen tungsten bulb
Surface illumination: 24V, 150W halogen tungsten bulb
-Machine overall size: 867*443*942mm (L x W x H)
-Weight: 150KGS

ModelJT25
Projection Screenφ350mm
Rotation Range0°~360°
Resolution of the rotary angle
Accuracy of the rotary angle
Objective Magnification Power10X    20X    50X    100X
Objective Visual Fieldφ35mm φ17.5mm  φ7mm  φ3.5mm
Objective Working Distance88.376mm  81.375mm 54mm  44.9mm
Error of magnification0.08%
Range of X-coordinate (mm)200mm
Range of Y-coordinate (mm)0~80mm (Focusing)
Z -coordinate(mm)150mm
Worktable area400mm×150mm
Resolution0.001mm
ImageReverse
Accuracy of Instrument(3+L/75)μm
Load Capacity10kg
Overall Size(mm)687×443×942
Transmission Lighting24V 150W Halogen tungsten lamp
Reflecting Lighting24V 150W Halogen tungsten lamp
Rated Voltage
Mainframe Weight150kg
