JT27

Quantity:

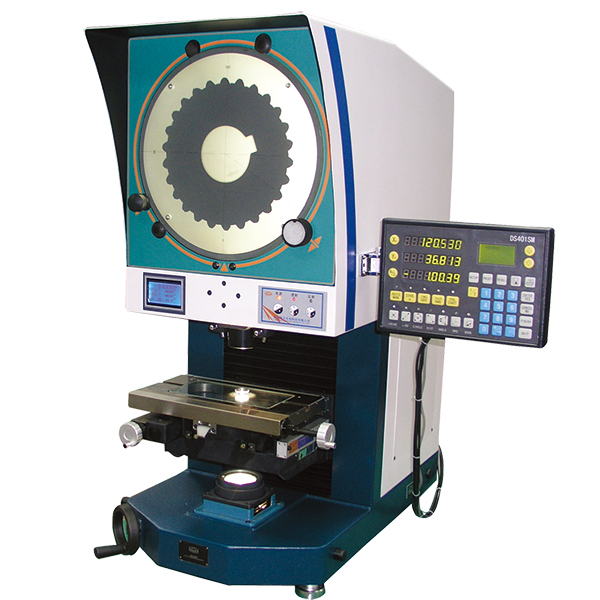

  • φ350 Digital Measuring Projector
  • φ350 Digital Measuring Projector
  • A vertical profile projector with 350mm screen diameter, reverse image, standard 10X lens, external DS401SM or DS600 DRO. 20X, 50X and 100X lens are available for selection. Widely used to measure various workpieces such as template, punching part, cam, gear, cutter etc.. Travel is 200mm*80mm*100mm (X*Y*Z)

φ350 Digital Measuring Projector
Features:
-With beautiful appearance and high precision in measurement, it is convenient for operation.
-Casting aluminum is selected for the processing of worktables, light in weight;
-The fiber transmission is adopted for the reflecting illuminating, which is small in dimensions, high in Its brightness and convenient for uses;
-The two high-and-low adjustable illumination intensities for transmission illuminating can be adaptable For measuring requirements of different workpieces;
-Real-time temperature display of transmission illuminating, reflecting illuminating and worktable can Automatically alarm when overheating.

φ350 Digital Measuring Projector
Features:
-With beautiful appearance and high precision in measurement, it is convenient for operation.
-Casting aluminum is selected for the processing of worktables, light in weight;
-The fiber transmission is adopted for the reflecting illuminating, which is small in dimensions, high in Its brightness and convenient for uses;
-The two high-and-low adjustable illumination intensities for transmission illuminating can be adaptable For measuring requirements of different workpieces;
-Real-time temperature display of transmission illuminating, reflecting illuminating and worktable can Automatically alarm when overheating.

Technical parameters:
-Screen diameter: φ 350 mm
-Rotation range: 0~360°
-Workstage:
Table size X coordinate(mm) Y coordinate(mm) Z coordinate(mm)
326 X 150 200 80 100(focus)

-Accuracy of the instrument: (3+L/75)μ M L Unit: Mm
-Load capacity of the worktable: 5KGS
-Lighting source
Transmission lighting: 24V 150W Halogen tungsten lamp
Reflecting lighting: 24V 150W Halogen tungsten lamp
-Objective
Magnification View-field on object(mm) Working distance(mm)
10X Φ 35 88.376
20X Φ 17.5 81.375
50X Φ 7 54
100X Φ 3.5 44.9

-Machine overall size: 775× 440× 980mm (L x W x H)
-Weight: 150 KGS

ModelJT27
Projection Screenφ350mm
Rotation Range0°~360°
Resolution of the rotary angle1′
Accuracy of the rotary angle4′
Objective Magnification Power  10X    20X      50X     100X
Objective Visual Fieldφ35mm   φ17.5mm   φ7mm   φ3.5mm
Objective Working Distance88.376mm 81.375mm  54mm   44.9mm
Error of magnification0.08%
Range of X-coordinate (mm)200mm
Range of Y-coordinate (mm)80mm
Z -coordinate (Focusing)(mm)0~100mm
Worktable area326mm×150mm
Resolution0.001mm
ImageReverse
Accuracy of Instrument(3+L/75)μm
Load Capacity5kg
Overall Size(mm)775×440×980
Transmission Lighting24V 150W Halogen tungsten lamp
Reflecting Lighting24V 150W Halogen tungsten lamp
Rated Voltage 220V  50Hz    110V  60Hz
Mainframe Weight150kg
