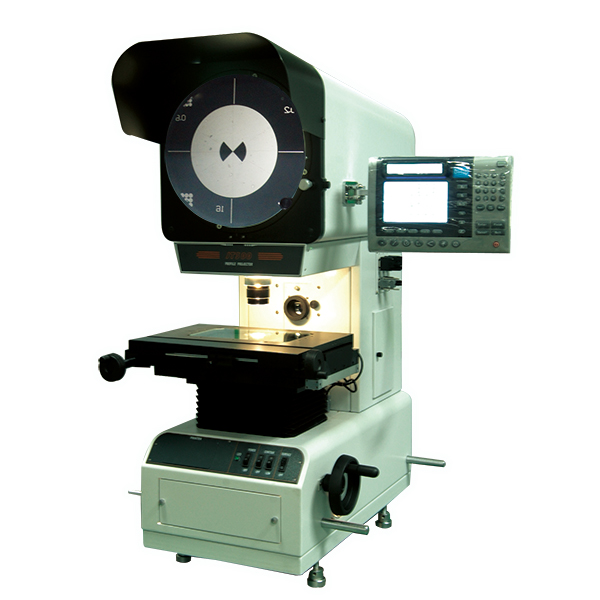

A vertical profile projector with 300mm screen diameter, erect image, standard 10X lens, external DS401SM or DS600 DRO. 20X, 50X and 100X lens are available for selection. Widely used to measure various workpieces such as template, punching part, cam, gear, cutter etc.. Travel is 200mm*100mm*80mm (X*Y*Z)
Quantity: |
---|
Features:
-The up and down system adopts linear guide way and nuts without interference. It's more comfortable and stable.
-The reflecting mirror adopts patent coating techniques with good anti-dust effects.
-The transmission illumination has high and low levels, which can meet different measuring requirements.
-Light source adopts Philip tungsten halogen lamp with high brightness and long using life to satisfy long time using demands.
-Axial flow fan with strong dissipations heat function dissipates heat in double directions
-The optical system has excellent quality, the objective forms clear image and the magnification is accurate.
-The working distance on object is large, which can meet measuring requirements of different parts.
-The RS232 port can realize the output and communication of data with computer.
- It is erect image with external DRO which is according to the operator's habits.
φ300 Digital Measuring Projector
Features:
-The up and down system adopts linear guide way and nuts without interference. It's more comfortable and stable.
-The reflecting mirror adopts patent coating techniques with good anti-dust effects.
-The transmission illumination has high and low levels, which can meet different measuring requirements.
-Light source adopts Philip tungsten halogen lamp with high brightness and long using life to satisfy long time using demands.
-Axial flow fan with strong dissipations heat function dissipates heat in double directions
-The optical system has excellent quality, the objective forms clear image and the magnification is accurate.
-The working distance on object is large, which can meet measuring requirements of different parts.
-The RS232 port can realize the output and communication of data with computer.
- It is erect image with external DRO which is according to the operator's habits.
Technical parameters:
-Screen Diameter: Φ300mm
-Rotating range: 0°~360°
-Resolution of the rotary angle: 1
-Accuracy of the rotary angle: 6
-Objective
Magnification Object Visual Field (mm) Object Working Distance (mm)
10X φ30 75.201
20X φ15 69.599
50X φ6 44.4
100X φ3 26.243
DS600 or DS401 Box
-Error of magnifying power ≤ 0.08%
-Worktable area: 400×225mm
-Travel of work stage: X=200mm Y=100mm Z=90mm
-Display equivalent of X Y: 1μm
-Accuracy of instrument: (3+L/75) um, L unit: Mm
-Load capability of worktable: 5kg
-Lighting source
Transmission lighting: 12V 100W Halogen tungsten lamp
Reflecting lighting: 24V 150W Halogen tungsten lamp
-Overall sizes of the instrument (mm): 694×380×1065
-Machine Weight: 135 kg
-Ambient environment of the instrument service
-Working temperature: 20±5'C
-Relative humidity: Not more than 60%
Model | JT300 |
Projection Screen | φ300mm |
Rotation Range | 0°~360° |
Resolution of the rotary angle | 1′ |
Accuracy of the rotary angle | 6′ |
Objective Magnification Power | 10X 20X 50X 100X |
Objective Visual Field | φ30mm φ15mm φ6mm φ3mm |
Objective Working Distance | 75.201mm 69.599mm 44.4mm 26.243mm |
Error of magnification | 0.08% |
Range of X-coordinate (mm) | 150mm 200mm |
Range of Y-coordinate (mm) | 50mm 100mm |
Z -coordinate (mm) Focusing | 80mm |
Worktable area | 350×175 400×225 |
Resolution | 1μm |
Image | Erect |
Accuracy of Instrument | (3+L/75)μm |
Load Capacity | 3kg |
Overall Size(mm) | 806×380×1065 |
Transmission Lighting | 12V 100W Halogen tungsten lamp |
Reflecting Lighting | 24V 150W Halogen tungsten lamp |
Rated Voltage | |
Mainframe Weight | 180kg |
