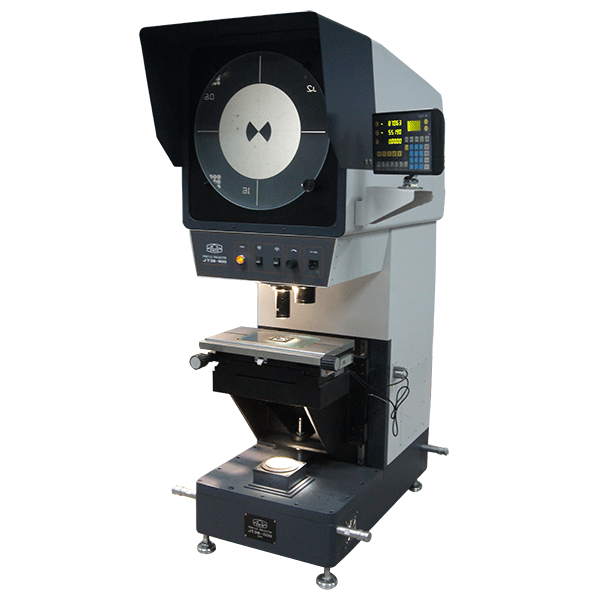

JT36

Characteristics
The projection screen of the instrument is vertically installed, convenient for the user to observe.
The standard configurations of the instrument are 10× Objectives, And the 5× Objectives, 20× Objectives, 50× Objectives, 100× Objectives, can be selected according to user's requirement.
Large worktable can be customized according to user's requirements.

Quantity:
  • φ500 Vertical Projector
  • φ500 Vertical Projector

Features:

JT36φ 500 Vertical Projector
JT36φ 600 Vertical Projector
Characteristics
The projection screen of the instrument is vertically installed, convenient for the user to observe.
The standard configurations of the instrument are 10× Objectives, And the 5× Objectives, 20× Objectives, 50× Objectives, 100× Objectives, can be selected according to user's requirement.
Large worktable can be customized according to user's requirements.

Specification and Parameter:
Projection screen (JT36-500):
Screen diameter(mm): φ 500
Rotation range: 0° ~360°
Resolution of the rotary angle: 1
Accuracy of the rotary angle: 6

Projection screen (JT36-600):
Screen diameter(mm): φ 600
Rotation range: 0° ~360°
Resolution of the rotary angle: 1
Accuracy of the rotary angle: 6

Objective (JT36-500)
Objective Magnification: 5× , 10× , 20× , 50× , 100×
Object Visual Field: φ 100mm, φ 50mm, φ 25mm, φ 10mm, φ 5mm
Object Working Distance: 102mm, 77mm, 87mm, 76.6mm, 49mm

Objective (JT36-600)
Objective Magnification: 5× , 10× , 20× , 50× , 100×
Object Visual Field: φ 120mm, φ 60mm, φ 30mm, φ 12mm, φ 6mm
Object Working Distance: 102mm, 77mm, 87mm, 76.6mm, 49mm

Worktable:
Worktable area(mm): 550× 260
Load capacity of the worktable: ≤ 10
Measuning range(mm): X-coordinate200, Resolution 0.001
Y-coordinate100, Resolution 0.001
Z-shaft(Focusing): 80
Accuracy of the instrument: (4+40L)μ M, of which, L = length of the workpiece measured ( unit: M)
Large worktable:
Worktable area(mm): 650× 360
Load capacity of the worktable: ≤ 5
Measuning range(mm):
X-coordinate300, Resolution 0.001
Y-coordinate200, Resolution 0.00
Z-shaft(Focusing): 80
Accuracy of the instrument: (4+40L)μ M, of which, L = length of the workpiece measured ( unit: M)
Lighting source:
Transmission lighting: 12V 150W Halogen tungsten lamp
Reflecting lighting: 12V 150W Halogen tungsten lamp
Overall sizes of the instrument (mm): 1420 × 1300× 1940
Mainframe weight(kg): JT36(500): 500, JT36(600)550
Remarks on the power source: 220V 50Hz
Room temperature: 20° C± 5° C
Relative humidity: Not more than 60%

ModelJT36-500JT36-600
Projection Screenφ500mm φ600mm
Rotation Range0°~360°0°~360°
Resolution of the rotary angle1′1′
Accuracy of the rotary angle6′6′
Objective Magnification Power 5X     10X     20X    50X    100X  5X     10X    20X    50X    100X
Objective Visual Fieldφ100mm φ50mm φ25mm  φ10mm  φ5mmφ120mm φ60mm φ30mm  φ12mm  φ6mm
Objective Working Distance102mm   77mm   87mm    76.6mm   49mm102mm   77mm   87mm    76.6mm   49mm
Error of magnification

Range of X-coordinate (mm)200mm300mm
Range of Y-coordinate (mm)100mm200mm
Z -coordinate (Focusing)(mm)80mm80mm
Worktable area500mm×260mm600mm×360mm
Resolution0.001mm0.001mm
ImageReverseReverse
Accuracy of Instrument(4+L/40)μm(4+L/40)μm
Load Capacity10kg5kg
Overall Size(mm)1420×1300×19401420×1300×1940
Transmission Lighting12V 150W Halogen tungsten lamp12V 150W Halogen tungsten lamp
Reflecting Lighting12V 150W Halogen tungsten lamp12V 150W Halogen tungsten lamp
Rated Voltage 220V  50Hz220V  50Hz
Mainframe Weight500kg550kg


φ500 Vertical Projector

Features:
The projection screen of the instrument is vertically installed, convenient for the user to observe.
The standard configurations of the instrument are 10× Objectives, And the 5× Objectives, 20× Objectives, 50× Objectives, 100× Objectives, can be selected according to user's requirement.
Large worktable can be customized according to user's requirements.

Technical parameters:
Projection screen (JT36-500):
Screen diameter(mm): φ 500
Rotation range: 0° ~360°
Resolution of the rotary angle: 1
Accuracy of the rotary angle: 6

Projection screen (JT36-600):
Screen diameter(mm): φ 600
Rotation range: 0° ~360°
Resolution of the rotary angle: 1
Accuracy of the rotary angle: 6

Objective (JT36-500)
Objective Magnification: 5× , 10× , 20× , 50× , 100×
Object Visual Field: φ 100mm, φ 50mm, φ 25mm, φ 10mm, φ 5mm
Object Working Distance: 102mm, 77mm, 87mm, 76.6mm, 49mm

Objective (JT36-600)
Objective Magnification: 5× , 10× , 20× , 50× , 100×
Object Visual Field: φ 120mm, φ 60mm, φ 30mm, φ 12mm, φ 6mm
Object Working Distance: 102mm, 77mm, 87mm, 76.6mm, 49mm

Worktable:
Worktable area(mm): 500× 260
Load capacity of the worktable: ≤ 10
Measuring range(mm): X-coordinate200, Resolution 0.001
Y-coordinate100, Resolution 0.001
Z-shaft(Focusing): 80
Accuracy of the instrument: (4+40L)μ M, of which, L = length of the workpiece measured ( unit: M)
Large worktable:
Worktable area(mm): 600× 360
Load capacity of the worktable: ≤ 5
Measuring range(mm):
X-coordinate300, Resolution 0.001
Y-coordinate200, Resolution 0.00
Z-shaft(Focusing): 80
Accuracy of the instrument: (4+40L)μ M, of which, L = length of the workpiece measured ( unit: M)
Lighting source:
Transmission lighting: 12V 150W Halogen tungsten lamp
Reflecting lighting: 12V 150W Halogen tungsten lamp
Overall sizes of the instrument (mm): 1420 × 1300× 1940
Mainframe weight(kg): JT36(500): 500, JT36(600)550
Remarks on the power source: 220V 50Hz
Room temperature: 20° C± 5° C
Relative humidity: Not more than 60%

ModelJT36-500JT36-600
Projection Screenφ500mm φ600mm
Rotation Range0°~360°0°~360°
Resolution of the rotary angle1′1′
Accuracy of the rotary angle6′6′
Objective Magnification Power 5X     10X     20X    50X    100X  5X     10X    20X    50X    100X
Objective Visual Fieldφ100mm φ50mm φ25mm  φ10mm  φ5mmφ120mm φ60mm φ30mm  φ12mm  φ6mm
Objective Working Distance102mm   77mm   87mm    76.6mm   49mm102mm   77mm   87mm    76.6mm   49mm
Error of magnification

Range of X-coordinate (mm)200mm300mm
Range of Y-coordinate (mm)100mm200mm
Z -coordinate (Focusing)(mm)80mm80mm
Worktable area500mm×260mm600mm×360mm
Resolution0.001mm0.001mm
ImageReverseReverse
Accuracy of Instrument(4+L/40)μm(4+L/40)μm
Load Capacity10kg5kg
Overall Size(mm)1420×1300×19401420×1300×1940
Transmission Lighting12V 150W Halogen tungsten lamp12V 150W Halogen tungsten lamp
Reflecting Lighting12V 150W Halogen tungsten lamp12V 150W Halogen tungsten lamp
Rated Voltage 220V  50Hz220V  50Hz
Mainframe Weight500kg550kg
