JT5A/B/E
You are here: Home » Products » Profile Projector » JT5A/B/E

JT5A/B/E

Quantity:
  • φ800 Large Screen Digital Measuring projecto
  • φ800 Large Screen Digital Measuring projecto
  • A vertical large profile projector with 800mm screen diameter, reverse image, standard 10X lens, external DS401SM or DS600 DRO. 20X, 25X and 50X lens are available for selection. Widely used to measure various workpieces such as template, punching part, cam, gear, cutter etc.. JT5A is digital measuring projector, JT5B is data processing projector, JT5E is full auto projector.

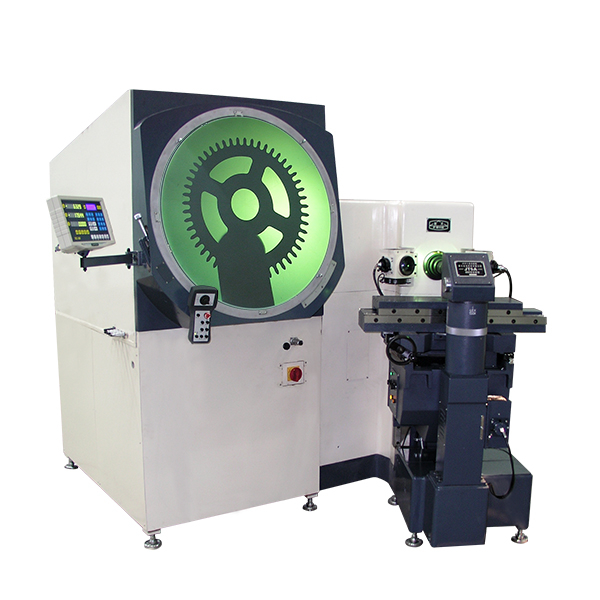

φ800 Large Screen Digital Measuring projector
JT5A/B/E
Usages
Large measuring range for its horizontal structure and large worktable, and it can measure special work piece for its worktable can swag. It is widely used in the industrial departments of electron, textile, machine and instrument manufacture etc.

Characteristics
Little error during the measurement for its special light source structure
Easy to measure for its worktable are droved by motor
High accuracy and easy to find the center point
It is equipped with a rotary worktable which is convenient for the measurement of gear work piece
The worktable can spin at the angle of ± 15° N. And is convenient for the measurement of the measured pieces with helical angle. This instrument can measure effectively surface and profile of various work pieces with complicated profile and shapes, such as punching piece. Gear template. Thread.

Technical Parameters
1. Projection Screen Diameter Φ 800 mm
Rotating Range 0° ~360°
Screen Rotating Scale 1°
Venire Scale 1'

ModelJT5
Projection Screenφ800mm
Rotation Range0°~360°
Resolution of the rotary angle1′
Rotation division value of projection screen
Objective Magnification Power10X    20X    25X    50X
Objective Visual Fieldφ80mm φ40mm  φ16mm  φ8mm
Objective Working Distance206mm  123.5mm  85mm    78mm
Error of magnification
Range of X-coordinate (mm)Longitudinal 300mm
Range of Y-coordinate (mm)Vertical 200mm
Z -coordinate (Focusing)(mm)Transverse  80mm
Worktable area630mm×200mm
Resolution0.001mm
ImageReverse
Accuracy of Instrument(4+L/50)μm
Load Capacity50kg
Overall Size(mm)2130×1800×1950
Transmission Lighting24V 250W Halogen tungsten lamp
Reflecting Lighting16V 150W Incandescent lamp
Rated Voltage
Mainframe Weight1900kg
Tailstock rackMax diameter φ200mm
Tailstock rackMax length  φ300mm
