JVB-C/JVB-CF Series of Full-automatic Video Measuring Machine
You are here: Home » Products » Video Measuring Machine » JVB-C/JVB-CF Series of Full-automatic Video Measuring Machine

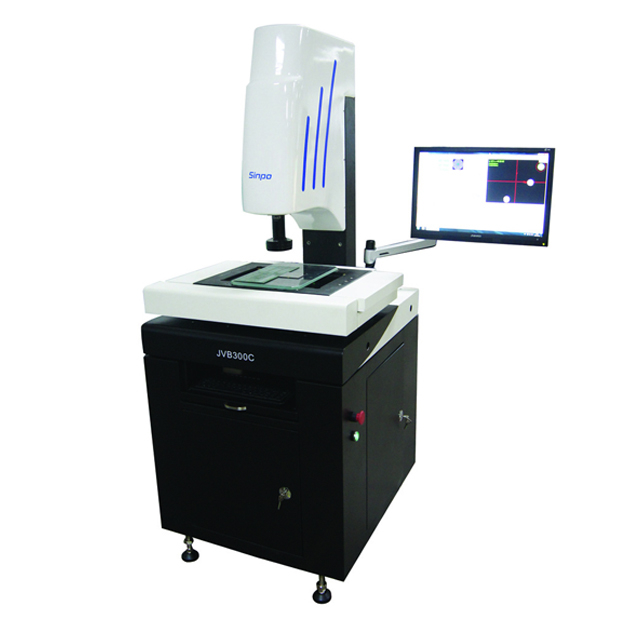

JVB-C/JVB-CF Series of Full-automatic Video Measuring Machine

High-accuracy granite base with higher strength and stability.
Guide rail directly fixed on the platform of double zero level of granite, ensuring its running accuracy.
Integrated circuit design with simple software operation, as well as powerful performance, stable and reliable functions.
Suitable for measuring mobile accessories, home appliances, machine parts, precision clamps, plastics, hardware, products related to computer, precision stamping parts, etc.

Quantity:
  • JVB-C series
  • Sinpo

Characteristics:

High-accuracy granite base with higher strength and stability.
Guide rail directly fixed on the platform of double zero level of granite, ensuring its running accuracy.
Integrated circuit design with simple software operation, as well as powerful performance, stable and reliable functions.
Suitable for measuring mobile accessories, home appliances, machine parts, precision clamps, plastics, hardware, products related to computer, precision stamping parts, etc.
Technical parameters:

CategoryFull-automatic Video Measuring Machine
Model numberJVB250C/JVB250CFJVB300C/JVB300CFJVB400C/JVB300CF
Travel(mm):X×Y×Z250×150×200300×200×200400×300×200
Overall dimensions (mm)860×802×1738860×802×1738960×902×1768
Weight (kg)330350500
Load Capacity (kg)30
Measurement resolution0.5um
Measurement accuracyX, Y accuracy: (3+L/200) um, Z accuracy: (5.0+L/200) um
Measuring speedX-axis: 150   Y-axis: 150   Z-axis: 80
Repeatability2um
Mode of motor controlIntegrated intelligent control (mouse, rocker)
LensIndependently developed auto zoom lens (optional USA NAVITAR lens)
Mode of drivingScrew rod
MagnificationOptical magnification: 0.7X-4.5X, image magnification: 28X-180X
SoftwareSINPO-CNC
CCDHD colorful special CCD (optional SONY HD CCD)
Power supply110-220V
EnvironmentTemperature: 20±5ºC, humidity: 45%-75%
Light sourcePCL omnidirectional intelligent programmable lighting system: 3-loop and 8-area surface light + bottom parallel light
