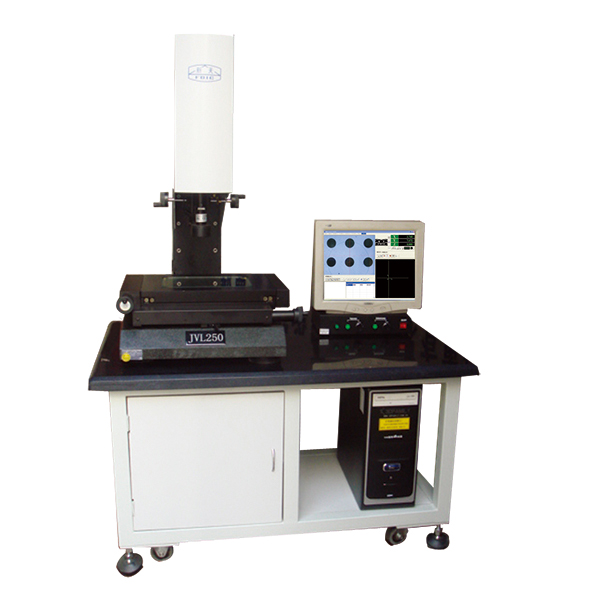

It can effectively test the profile, surface shape, size, angle and position of various complex workpieces, especially is used in microcosmic inspection and macroscopic control of precise parts. This machine is suitable for the fields of products development, converse engineering, quality inspection etc, such as watch parts, electronic connector assembly, hardware punching pieces, spring and circuit broad etc.
The Soft ware OVM Lite is easy to learn and use.
Very stable precise granite base and column.
Contour and surface illumination adopt LED with the strong-points of high intensity, long service life, and small volume, and light from bottom and surface can be adjusted manually.
Continuous magnification-change lens can change rapidly the magnification of im
Age, so it is suitable for different workpieces measurements.
The X, Y axis adopt slider block and guide structure to reduce the measurement error and guarantee measuring accuracy.
It has output function of image-words report forms and can easily get the measuring results.
Introduction of software function
Main Function: Geometrical measuring function via selecting dots directly
Essential geometrical measurement
Compose geometrical elements for measurement
Assess the tolerance of form and position
Set up coordinates system
2D graphics scanning
Measuring data can be guided into WORD EXCEL & CAD file format
Main Measuring Function
Essential geometrical measurement: Point, line, circle, circular arc and angle.
Combination elements measurement: Point, line, circle, circular arc and angle; The distance between the center of two circles, tangent line of two circles, central line of two lines, midpoint, vertical distance, angular bisector, and intersection of two lines.
Assessment for tolerance of form and position Tolerance: Coaxiality, circular degree, linearity, precision of location and gradient.
|Measuring range (mm)||250×150×200||300×2000×200||400×300×200|
|Size (including base) (mm)||1000×650×1650|
|Platform load capacity||30kg|
|Operating mode||Manual control (quick switch included)|
|Magnification||Optical magnify zoom: 0.7X-4.5X; Image magnify zoom: 28X-180X|
|CCD||410000 pixel color CCD|
|Measuring system||FOIC lite simple version measuring software|
|Applicable environment||Temperature: 20 centigrade±5 centigrade Humidity: 45%-75%|
|Computer configutation||High performance host +17 nich flat display|
|Power supply||(110V/220V)±10% 50Hz/60Hz|
