JX14C

Quantity:

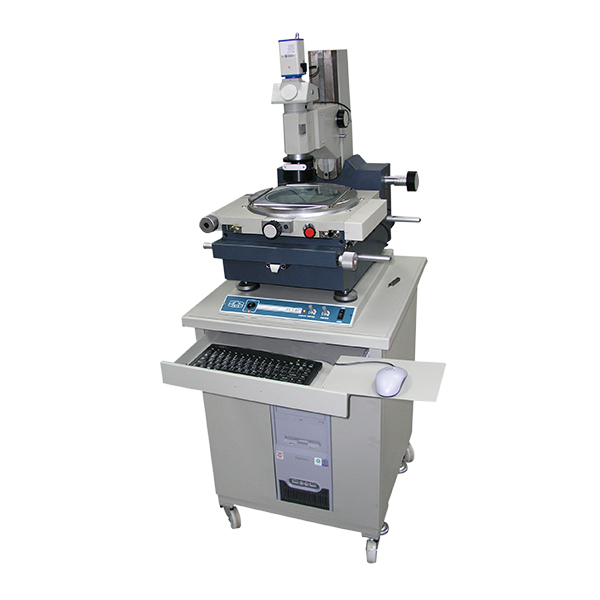

  • Image Processing Large Toolmaker's Microscope
  • Image Processing Large Toolmaker's Microscope
  • Digital imaging technology software can identify the boundary of the contour automatically, thus reduce human error and enhance operation efficiency. Equipped with powerful image processing software to accomplish complicated measurement tasks and realize communication with CAD. Provides various eyepieces and objectives to get a clear image and large view field.

The photoelectrical technique is adopted, with a precision grating rule as a measuring element for X- and Y-axle and a numbering; With readings direct-viewing and testing convenient.

Adopt Digital image technology, automatic recognition of contour, eliminate personal error, enhance operation efficiency.

Equipped with powerful image processing software, can accomplish complicated measuring task, and realize communication with CAD.

With multiple eyepieces and objectives, the main microscope has a large scope of view field with clear image formation.

The main microscope can oscillate left and right, suitable for the measurement for spiral parts.

LED-illuminating lighting is adopted for transmission and reflecting illumination, with low heating power and long life.

High-speed and micro-motion devices are adopted, which can be switched over quickly.

The tailstock rack is installed to measure the axel-type parts.

Multiple accessories such as V type support, optical detector are provided, with extensive uses.


Image Processing Large Toolmaker's Microscope

Feature

The photoelectrical technique is adopted, with a precision grating rule as a measuring element for X- and Y-axle and a numbering; With readings direct-viewing and testing convenient.

Adopt Digital image technology, automatic recognition of contour, eliminate personal error, enhance operation efficiency.

Equipped with powerful image processing software, can accomplish complicated measuring task, and realize communication with CAD.

With multiple eyepieces and objectives, the main microscope has a large scope of view field with clear image formation.

The main microscope can oscillate left and right, suitable for the measurement for spiral parts.

LED-illuminating lighting is adopted for transmission and reflecting illumination, with low heating power and long life.

High-speed and micro-motion devices are adopted, which can be switched over quickly.

The tailstock rack is installed to measure the axel-type parts.

Multiple accessories such as V type support, optical detector are provided, with extensive uses.


Technical Parameter
Worktable
Measuring range of coordinate
X-coordinate: 150mm Y-coordinate: 75mm
Measuring resolution ratio: X- and Y- coordinate: 0.001mm
Accuracy of the instrument: X- and Y- coordinate: (2+L/50)μ M, of which, L=measured length in mm
Diameter of the circular worktable: φ 190mm (glass) φ 280mm (Metal)
Angular calibrated range of the circular worktable: 0° ~360°
Measured angle resolution ration of the circular worktable: 3
Microscope upright column
Sloping scope: ± 12°
Calibrated value of the slope angle: 30
Optical detector:
Minimum detective hole diameter of the optical detector: φ 5mm
Maximum detective depth of optical detector: 15mm
Measuring Force: 0.1N
Tailstock rack:
Maximum clamping diameter: φ 70mm
Maximum clamping length: 190mm

Objective
Objective magnification Total magnification Object working distance (mm) Image magnification
1× 10× 82 40×
3× 10× 70 120×
5× 10× 49 200×

Image range on screen (mm)
1/25.2× 4.1 1/34.1× 3.1
1/21.7× 1.4 1/31.4× 1.0
1/21.0× 0.8 1/30.8× 0.6
Maximum load: 20kg
Overall size of instrument: 720× 460× 600
Weight of instrument: 100kg

ModelJX14C
X-coordinate(mm)150mm
Y-coordinate(mm)75mm
Resolution ration (mm)X and Y coordinate:0.001mm
Accuracy(2+L/50)μm
Angular calibrated range of the circular worktable0°~360°
Angle resolution ratio of circular worktable 3′
Diameter of circular worktableφ190mm (glass) φ280mm(metal)
Microscope upright columnSloping scope±12°
Calibrated value of slope angle30′
Template eyepieceCalibrated range
Angular calibrated value
Tailstock rackMax clamping diameterφ70mm
Max clamping length190mm
Optical detectorMin detective hole diameterφ5mm
Max detective depth 15mm
Objective magnification  1X      3X      5X
Gross magnifying power10X       10X     10X
Object working distance82mm     70mm     49mm
Object visual field40X      120X     200X
Overall sizes (mm)720×460×600
Weight100kg
Max load
20kg
Measuring Force
0.1N
Image range on screen1/2″≈5.2×4.1  1/2″≈1.7×1.4  1/2″≈1.0×0.8


1/3″≈4.1×3.1  1/3″≈1.4×1.0  1/3″≈0.8×0.6
