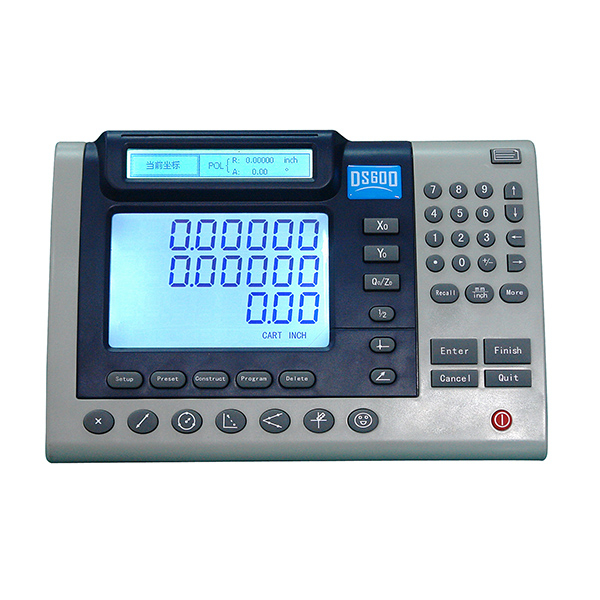

DS600 is used for digital linear measuring system, it can carry out analysis and data processing on 2D data, it is widely used for profile projectors, toolmaker’s microscope, and other two dimensional measuring instruments. It can measure dimensions, setup and construct graphic elements of points, lines, circles, angles, distances etc.
DRO Digital Display Meter
DS600 is suitable for digital linear scale measuring system and vision measuring system, for conducting analysis and processing on two-dimensional data, widely used for profile projector, toolmaker's microscope and two-dimensional measuring instruments.
Measurement, setup and structure of points, lines, circles, angles and distances etc. Geometry elements
DS600 can put the coordinate right and coordinate horizontal movement. Thus it is convenient for putting the workpiece right and reducing the adjustment time.
DRO Digital Display Meter
DS600 is suitable for digital linear scale measuring system and vision measuring system, for conducting analysis and processing on two-dimensional data, widely used for profile projector, toolmaker's microscope and two-dimensional measuring instruments.
Measurement, setup and structure of points, lines, circles, angles and distances etc. Geometry elements
DS600 can put the coordinate right and coordinate horizontal movement. Thus it is convenient for putting the workpiece right and reducing the adjustment time.
RS232 output function, conducting communications with the computer by way of the compressed ASC IIcode.
Multiple coordinate display forms: Display of polar coordinates, rectangular coordinates, INC coordinates and ABC coordinates; Display of Metric and Inch Systems.
Linear compensation or sector compensation may be made for the linear scale.
Z-axis may be connected with the linear scale or the rotary encoder( angle display).
100 temporary storage elements and 100 permanent storage elements.
Number of input axes: Three axes of X, Y and Z/Q, with minimum resolution of 0.001mm.
Input waveforms: TTL square waves
Input voltage: AC 110V~240V, 50Hz/60Hz
Overall Size: 290× 195× 80 (mm)
Weight: <2.5Kg
RS232 output function, conducting communications with the computer by way of the compressed ASC IIcode.
Multiple coordinate display forms: Display of polar coordinates, rectangular coordinates, INC coordinates and ABC coordinates; Display of Metric and Inch Systems.
Linear compensation or sector compensation may be made for the linear scale.
Z-axis may be connected with the linear scale or the rotary encoder( angle display).
100 temporary storage elements and 100 permanent storage elements.
Number of input axes: Three axes of X, Y and Z/Q, with minimum resolution of 0.001mm.
Input waveforms: TTL square waves
Input voltage: AC 110V~240V, 50Hz/60Hz
Overall Size: 290× 195× 80 (mm)
Weight: <2.5Kg
