JCXU series
SINPO
9031492000
Stainless steel tape scale series
high accuracy, reliable performance, anti pollution, esay mounting

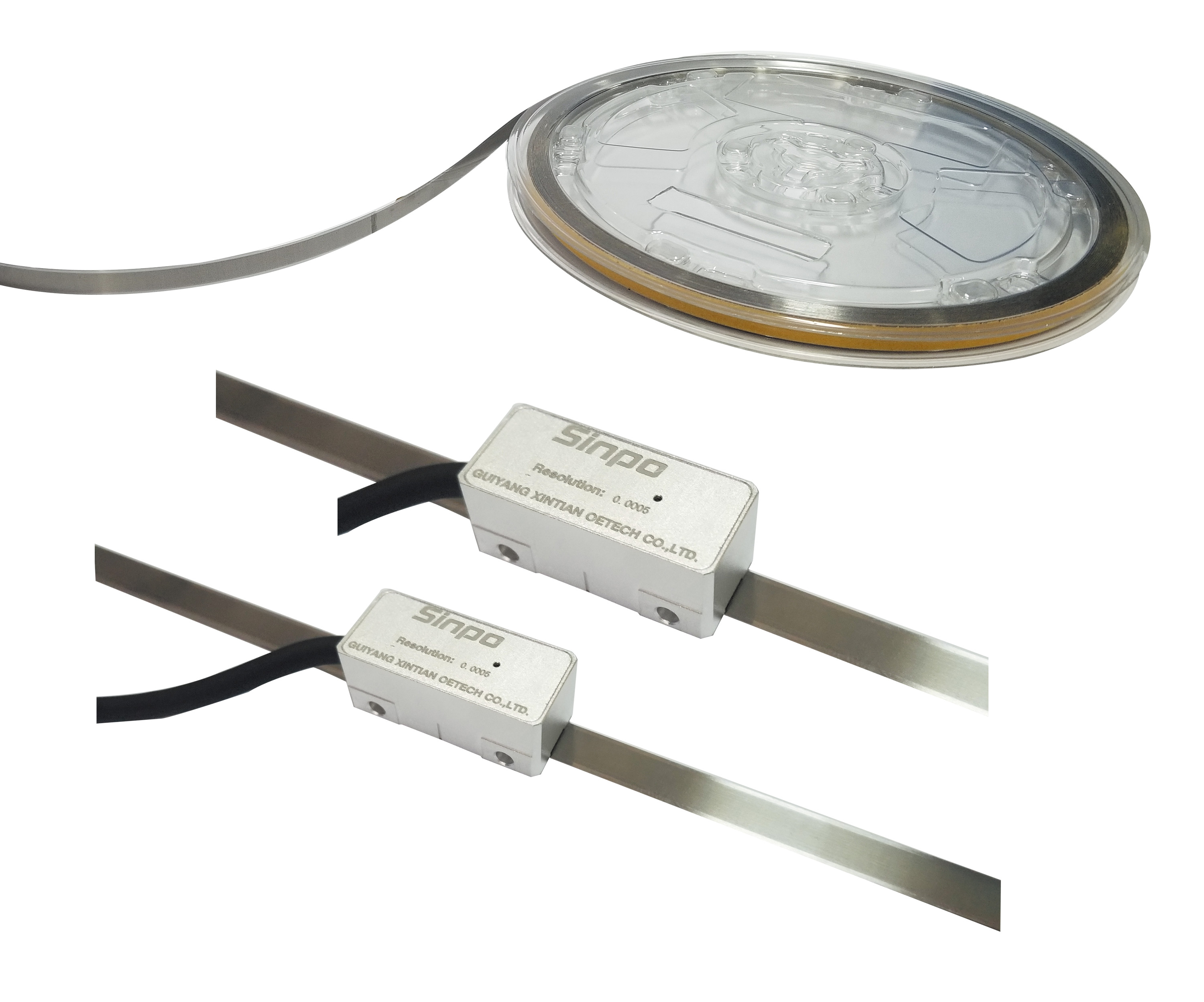

JCXU Read header Series
JCXU linear scale read header is an incremental read header specially designed to provide feedback for high precision linear measurement. Adopting most advanced single field scanning technology, advanced automatic high precision gain measurement and automatic deviation correction technology of Sinpo, it can read 20um of grating scale. With high precision and strong anti-pollution, it can be used on the high performance and high reliability applications with need of closed loop and speed control such as high precision machine tools, high speed automation equipments etc.
JCXU linear scale read header is compatible with Sinpo advanced JCXU2 series stainless steel tape scale.
Features:
Maximum resolution: 20nm.
Strong anti-pollution ability: large area of single field scanning technology, simultaneous scanning when grating lines are more than 100. Effectively reduce the impact of other pollutants such as dust.
High bandwidth, low subdivision error: with built-in high-speed ADC and reverberation circuit, it can provide higher bandwidth, higher resolution, higher dynamic response and lower subdivision error.
Automatic gain control, automatic deviation correction: it can provide more stable signal output with advanced automatic gain control, automatic deviation correction circuit and algorithm. Multicolor indicator light can prompt the signal intensity, which makes it easy to install.
Technical Parameters
Item | Parameters |
Size | 36mm×16.4mm×14.3mm(L×W×H) |
Weight | Read header: 15g, cable: 35g/Meter |
Power supply | 5V±10%,150mA |
Output signal | TTL or 1Vpp |
Plug | D-sub 9 Pin Male |
Accuracy grade at 20 ℃ | ±5μm/m |
Resolution | TTL: 5um, 1um, 0.5um, 0.2um,0.1um, 50nm, 20nm |
Resolution | (SinCos 1VPP)20μm |
Sub-division error(SDE) | ＜40nm |
Maximum speed | 12m/s relating to the resolution and the minimum clock frequency of the counter |
Maximum acceleration | 35G |
Reference mark | Hall sensor |
Limit switch | Hall sensor |
Uni-directional repetition accuracy of reference mark | 1LSB |
Environmental Requirements | |
Operating temperature | -10°C~+70°C |
Working humidity | RH<95% (non condensation ) |
Sealing | IP40 |
Storage temperature | -20°C~+85°C |
Storage humidity | RH<95% (non condensation ) |
JCXU2 Steel Tape Scale Technical Parameters
Item | Parameters |
Steel tape scale type | Incremental grating scale |
Scale pitch | 20μm |
Accuracy | ±5μm/m |
Linearity | ± 2.5um/m (can make two points correction) |
Scale size | H 0.2mm x W8mm |
Size of gum | H 0.1mm×W6mm |
Scale length | 100mm－50m |
Coefficient of thermal expansion at 20°C | 10.5μm/m/℃ |
Scale weight | 12.6g/m |
Scale material | High-strength stainless steel |
Environmental Requirements | |
Operating temperature | 0℃~70℃ |
Working humidity | RH<95% (non condensation ) |
Sealing | IP40 |
Storage temperature | -20℃~+70℃ |
Storage humidity | RH<95% (non condensation ) |
Read header Installation
Benefiting from Sinpo's advanced single field scanning technology and advanced optical system, JCXU read header has a very loose tolerance range for installation.
Axis | Tolerance Range |
Y | ±1mm |
Z | ±0.2mm |
X axis rotation | ±2° |
Y axis rotation | ±2° |
Z axis rotation | ±2° |
Read header moving direction as arrow indicating is positive direction
When moving follow up the arrow direction:
TTL A type: A ahead of B
Analog type: Sin ahead of Cos
PIN Function and Connection (D-sub9 Male Plug)
No. | Function | No. | Function |
PIN 1 | A- | PIN 6 | A+ |
PIN2 | 0V | PIN 7 | +5V |
PIN 3 | B- | PIN 8 | B+ |
PIN 4 | GND | PIN 9 | R+ |
PIN 5 | R- |
