Flotation Length Measuring Machine
Flotation Length Measuring Machine

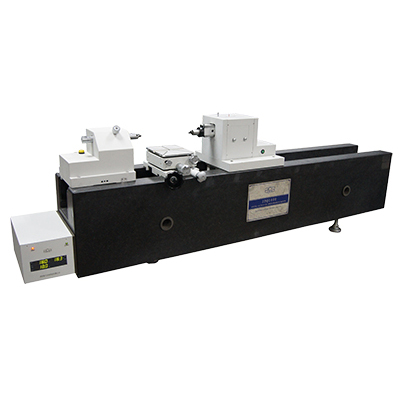

JDQ Series Flotation Length Measuring Machine
Features:
1 High-quality cast iron base is taken after nature ageing. Therefore it has good rigidity and stability;
2 It adopts the air floating method, so its operation is flexible and portable and it has no abrasion and small noise;
3 Equipped with the temperature transducer, it can real time display the temperatures of instrument and workpiece and automatically complete the real time compensation of temperature error;
4 The complete measuring accessories with wide range can meet different measuring demands;
5 The grating measuring system with high precision has the characteristics of reliable stability, low heating power, corrosion resistant and pollution resistance, which also has higher measuring precision;
6 The main measuring axis adopts optimum square design so as to ensure the moving stability;
7 Absolute measurement and comparison measurement for the external dimension. Measurements for the internal dimension, hole and thread;
8 Real time hint the operating step: It has the function for automatically find reversal point and operation is very convenient;
9 Input the coordinate point by keyboard: Relative data can be outputted to AutoCAD WORD so as to process data or print data;
Applying range:
Its mainly uses is used to directly measure the checking length bars of the external micrometers, internal micrometers and length bars made by yourself. It can also measure the internal dimensions of catch plates, through-holes and blind holes and the pitch diameter of external thread.
The serial air flotation grating length measuring machine can carry out the comparison and absolute measurements of internal and external dimensions of various parts. It is suitable for using in the inspecting departments and laboratory of machine building, tool making, in the manufacture of gauges and measuring instruments.
Technical Parameters:
1. Type External dimension(mm) Internal dimension(mm)
JDQ1000 0~1000 30~900
JDQ2000 0~2000 30~1900
JDQ3000 0~3000 30~2900
JDQ6000 0~6000 30~5900
2. Digit display equivalent and accuracy of instrument
Digit display equivalent: 0.2μ M
Accuracy of instrument: ± (0.5+L/200)μ M, Here L means length to be measured, in mm
3. Moving range for Abbe measuring axis: ± 10
4. Measuring force: 1.5N or 2.5N
5. Combination dimension of internal diameter contact tip: φ 6H7
6. Combination external dimension of measuring rod with contact tip: φ 6g6
7. Universal worktable
Vertical travel 70mm
Transverse travel 40mm
Longitudinal floating travel of horizontal position 10mm
Rotation More than ± 3°
Oscillating More than ± 3°
Scale unit of transverse micro drum 0.01mm
Maximum load capacity 10kg
8. Maximum holding diameter of center cradle
For length of 0~170mm φ 140
For length of 170~210mm φ 130
9. V-shape support
Adjusting range for height more than 28
Diameter range for supporting workpiece up to φ 30
10. Bracket for gauge block: Length range of supporting gauge block 0~1000
11. Bracket for length bar: Length range for supporting length bar 0~1000
12. Gauge block support: Length range for combining gauge block 0~1000
13. Working range for V-shape iron up to Φ 30
Model | JDQ1000 | JDQ2000 | JDQ3000 | JDQ6000 | ||
Measurement range (mm) | External size | 0~1000 | 0~2000 | 0~3000 | 0~6000 | |
Internal size | 30~900 | 30~1900 | 30~2900 | 30~5900 | ||
Digital display equivalent | 0.2μm | 0.2μm | 0.2μm | 0.2μm | ||
Accuracy | ±(0.5+L/200)μ | ±(0.5+L/200)μ | ±(0.5+L/200)μ | ±(0.5+L/200)μ | ||
Moving range for Abbe measuring axis | ±10 | ±10 | ±10 | ±10 | ||
Measuring force | 1.5N 2.5N | 1.5N 2.5N | 1.5N 2.5N | 1.5N 2.5N | ||
Combination dimension of internal diameter tontact tip | φ6H7 | φ6H7 | φ6H7 | φ6H7 | ||
Combination dimension of measuring rod with contact tip | φ6g6 | φ6g6 | φ6g6 | φ6g6 | ||
Universal worktable (mm) | Vertical travel | 70mm | 70mm | 70mm | 70mm | |
Transverse travel | 40mm | 40mm | 40mm | 40mm | ||
Longitudinal floating travel of horizontal position | 10mm | 10mm | 10mm | 10mm | ||
Rotation | ≥±3° | ≥±3° | ≥±3° | ≥±3° | ||
Oscillating | ≥±3° | ≥±3° | ≥±3° | ≥±3° | ||
Scale unit of transverse micro-drum | 0.01mm | 0.01mm | 0.01mm | 0.01mm | ||
Load capacity | 10kg | 10kg | 10kg | 10kg | ||
Maximum holding diameter of center cradle | When the length between 0~170 | φ140mm | φ140mm | φ140mm | φ140mm | |
When the length between 170~210 | φ130mm | φ130mm | φ130mm | φ130mm | ||
V-type support | Adjustable range of height | >28mm | >28mm | >28mm | >28mm | |
Diameter range of the supporting member | up to φ30mm | up to φ30mm | up to φ30mm | up to φ30mm | ||
Bracket for gauge block: length range of supporting gauge block | 0~1000 | 0~1000 | 0~1000 | 0~1000 | ||
Bracket for length bar: length range of supporting length bar | 0~1000 | 0~1000 | 0~1000 | 0~1000 | ||
Gauge block support: length range for combining gauge block | 0~1000 | 0~1000 | 0~1000 | 0~1000 | ||
Working range of V-shape iron | up to φ30mm | up to φ30mm | up to φ30mm | up to φ30 |
