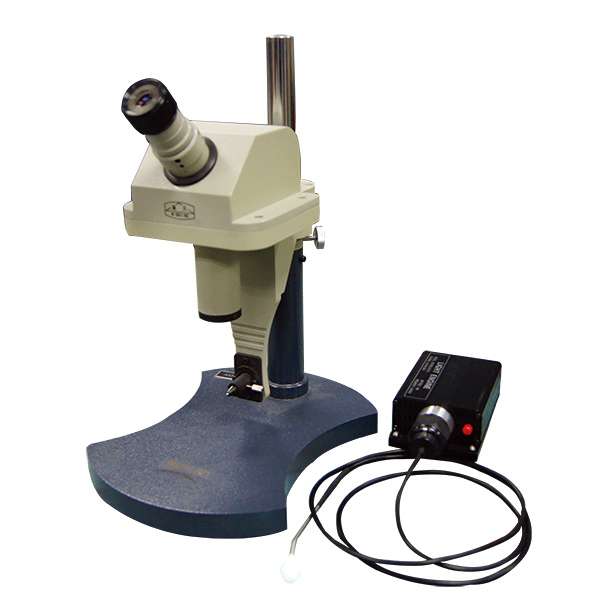

Wall Thickness Measuring Microscope
Wall Thickness Measuring Microscope
Wall Thickness Measuring Microscope is mainly used to measure hollow blade with small dimension, hollow casting, nozzle etc. whose wall thickness cab not be measured by traditional measuring instruments. It have wide application in Aero space, Aviation, Automobile and high precision casting industry.
Wall Thickness Measuring Microscope
Uses
Wall Thickness Measuring Microscope is mainly used to measure hollow blade with small dimension, hollow casting, nozzle etc. Whose wall thickness cab not be measured by traditional measuring instruments. It have wide application in Aero space, Aviation, Automobile and high precision casting industry.
Wall Thickness Measuring Microscope
Uses
Wall Thickness Measuring Microscope is mainly used to measure hollow blade with small dimension, hollow casting, nozzle etc. Whose wall thickness cab not be measured by traditional measuring instruments. It have wide application in Aero space, Aviation, Automobile and high precision casting industry.
Characteristics
Direct observation, convenient operation.
LED cold lighting source, light color selection is available.
Portable and light, easy for on line inspection.
Provide multiple standard gauge with long life.
Characteristics
Direct observation, convenient operation.
LED cold lighting source, light color selection is available.
Portable and light, easy for on line inspection.
Provide multiple standard gauge with long life.
Technical parameter
Objective: 3X
Focusing Distance: 83mm
Eyepiece: 10X
Illumination source: 16W LED cold source
Lighting fiber: Diameter 1mm, 2mm, 3mm with the length of 600mm
Standard positioning head: 4 pieces
Technical parameter
Objective: 3X
Focusing Distance: 83mm
Eyepiece: 10X
Illumination source: 16W LED cold source
Lighting fiber: Diameter 1mm, 2mm, 3mm with the length of 600mm
Standard positioning head: 4 pieces
