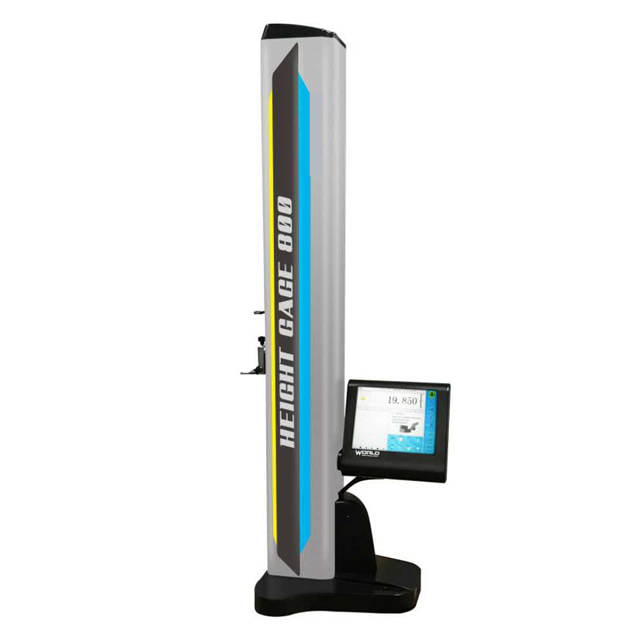

JG Series
Sinpo
Height Gauge
JG Series is a vertical digital metrological instrument with single coordinate to measure one dimensional sizes. There are three type with different measuring ranges for user’s selection. It’s an intelligent measuring instrument and can carry out task automatically. Equipped with air base to realize easy movement.
Usages:
The Height Gauge has built-up air pump and its base is three points air-flotation. Move it easily. It can move rapidly by manual operation so as to realize rapid measurements;
Find the reversal point automatically: The measuring head is driven by motor. The measuring head will automatically contacts workpiece and find the highest point and lowest point to obtain automatic measurement.;
For measurements, it has sounds to hint;
Inside of the altimeter, it has chargeable battery group to realize portable measurements;
The controlling panel of readout is whole LCD touch screen and displays the Chinese and English. The operation is convenient;
When the Positive/Negative tolerance is not in its range, it will display different colours;
USB data outputs;
2D measuring function;
Usages:
The Height Gauge has built-up air pump and its base is three points air-flotation. Move it easily. It can move rapidly by manual operation so as to realize rapid measurements;
Find the reversal point automatically: The measuring head is driven by motor. The measuring head will automatically contacts workpiece and find the highest point and lowest point to obtain automatic measurement.;
For measurements, it has sounds to hint;
Inside of the altimeter, it has chargeable battery group to realize portable measurements;
The controlling panel of readout is whole LCD touch screen and displays the Chinese and English. The operation is convenient;
When the Positive/Negative tolerance is not in its range, it will display different colours;
USB data outputs;
2D measuring function;
Height Gauge
Features:
JG Serial Intelligent Height Gaugeis a vertical digital metrological instrument with single coordinate, which uses the grating as the measuring part. The instrument is a mute-function computer Height Gauge, which is suitable for using in the factory. The base has very high stability and has three points air-flotation, which uses the orifice restricting principle by the air bearing. And then the instrument is supported by the high pressure air so as to make the instrument do rapidly movement without resistance, which can prevent the liquid and dust invasion and has long using life. Therefore, it can measure the distance between the parallel surfaces, diameter of hole and axis, center distance and geometrical error.
Height Gauge
Features:
JG Serial Intelligent Height Gaugeis a vertical digital metrological instrument with single coordinate, which uses the grating as the measuring part. The instrument is a mute-function computer Height Gauge, which is suitable for using in the factory. The base has very high stability and has three points air-flotation, which uses the orifice restricting principle by the air bearing. And then the instrument is supported by the high pressure air so as to make the instrument do rapidly movement without resistance, which can prevent the liquid and dust invasion and has long using life. Therefore, it can measure the distance between the parallel surfaces, diameter of hole and axis, center distance and geometrical error.
Model | JG350 | JG600 | JG800 |
Measuring range (mm) | 350 | 600 | 800 |
Display resolutions (mm) | 0.001 | 0.001 | 0.001 |
Maximum allowable error (μ m) | 3+L/150 | 3+L/150 | 3+L/150 |
Repeatability precision (μ m) | ≤3 | ≤3 | ≤3 |
Maximum speed for manual operation (mm/s) | 1000 | 1000 | 1000 |
Maximum speed for motor operation (mm/s) | 150 | 150 | 150 |
Measuring pressure (N) | 1.5~2.5 | 1.5~2.5 | 1.5~2.5 |
Power Supply | Chargeable Combined battery group | Chargeable Combined battery group | Chargeable Combined battery group |
Continuous working time (H) | >2 | >2 | >2 |
Operating temperature (Centigrade)) | 20±5 | 20±5 | 20±5 |
Total height (mm) | 730 | 980 | 1180 |
Weight (kg) | 35 | 45 | 50 |
Model | JG350 | JG600 | JG800 |
Measuring range (mm) | 350 | 600 | 800 |
Display resolutions (mm) | 0.001 | 0.001 | 0.001 |
Maximum allowable error (μ m) | 3+L/150 | 3+L/150 | 3+L/150 |
Repeatability precision (μ m) | ≤3 | ≤3 | ≤3 |
Maximum speed for manual operation (mm/s) | 1000 | 1000 | 1000 |
Maximum speed for motor operation (mm/s) | 150 | 150 | 150 |
Measuring pressure (N) | 1.5~2.5 | 1.5~2.5 | 1.5~2.5 |
Power Supply | Chargeable Combined battery group | Chargeable Combined battery group | Chargeable Combined battery group |
Continuous working time (H) | >2 | >2 | >2 |
Operating temperature (Centigrade)) | 20±5 | 20±5 | 20±5 |
Total height (mm) | 730 | 980 | 1180 |
Weight (kg) | 35 | 45 | 50 |
