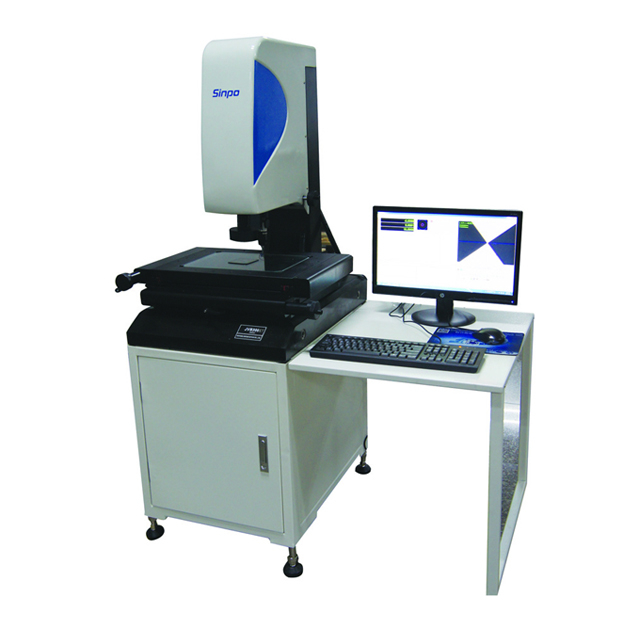

JVB-ET Series
Sinpo
JVB-ET series
Characteristics:
High-accuracy granite base with higher strength and stability.
Motor installed on Z-axis and adopts rocker control, convenient for users' quick measurement.
Semi-automatic measuring software providing various auto image measuring tools to avoid visual error, characterized by SPC statistic analysis and programming study. Data graphics can be output to Auto CAD for further processing.
,1 |
Corrections are not required for particular fixed magnification by using positioned lens and combining with the software.
Suitable for measuring mobile accessories, home appliances, machine parts, precision clamps, plastics, hardware, products related to computer, precision stamping parts, etc.
Technical parameters:
| Category | Semi-automatic Touch Probe Video Measuring Machine | ||
| Model number | JVB250ET | JVB300ET | JVB400ET |
| Travel(mm):X×Y×Z | 250×150×200 | 300×200×200 | 400×300×200 |
| Overall dimensions (mm) | 1200×700×1540 | 1200×700×1540 | 1500×985×1630 |
| Weight (kg) | 330 | 350 | 500 |
| Load Capacity (kg) | 30 | ||
| Measurement resolution | 0.5um | ||
| Measurement resolution | X, Y accuracy: (3+L/200) um, Z accuracy: (5.0+L/200) um | ||
| Repeatability | 2um | ||
| Operating mode | X, Y manual, Z motor driven | ||
| Magnification | Optical magnification: 0.7X-4.5X, image magnification: 28X-180X | ||
| Software | SINPO-ET | ||
| CCD | 410,000 pixel, colorful CCD | ||
| Power supply | 110-220V | ||
| Environment | Temperature: 20±5ºC, humidity: 45%-75% | ||
| Light source | Programmable 3-loop and 8-area LED cold light (optional 5-loop and 8-area) | ||
| Remarks | (with RENISHAW measuring head) | ||
