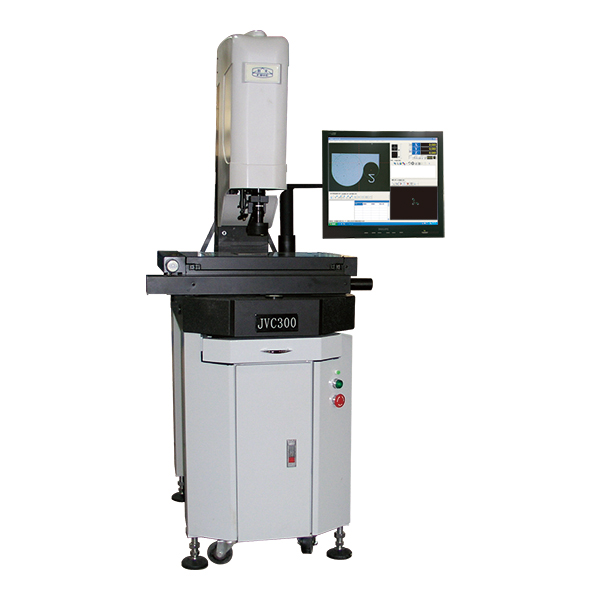

Automatic type video measuring machine with three different XYZ travel for selection. It is equipped with high quality CCD, powerful 2D measuring software and computer. The machine can measure various workpiece such as electronic components, punching parts, plastic and rubber parts etc effectively.
Auto Video Measuring Machine
Usages:
Video measuring meters are new products introduced to the public in latest years by our company. In order to satisfy the market's demand, video measuring meters by our company are divided into different product types and specifications, including: JVL-series economic and practical type, JVP-series high-precession intensifier-type, JVT-series three-dimensional composite-type, JVC series CNC-type, etc.
A video measuring meter is a kind of measuring instrument, by means of CCD imaging and magnifying the workpiece image to the software system, and by using various measuring functions in the strong software system to realize microscope and quality control for the sizes, positions and forms of the measured piece. It is widely and suitably used in measurement services at various levels or workshops' inspection stations in various industries of electronics, instruments and meters, cutting-tools and gripping devices, precision machine elements, precision hardware pieces, electronic components, plastic and rubber finished products, semiconductor components, punching pieces, socket connectors, die equipment, automobiles, machining operation, military industry, aerospace, etc. And colleges and universities, scientific research institutes, etc.
Auto Video Measuring Machine
Usages:
Video measuring meters are new products introduced to the public in latest years by our company. In order to satisfy the market's demand, video measuring meters by our company are divided into different product types and specifications, including: JVL-series economic and practical type, JVP-series high-precession intensifier-type, JVT-series three-dimensional composite-type, JVC series CNC-type, etc.
A video measuring meter is a kind of measuring instrument, by means of CCD imaging and magnifying the workpiece image to the software system, and by using various measuring functions in the strong software system to realize microscope and quality control for the sizes, positions and forms of the measured piece. It is widely and suitably used in measurement services at various levels or workshops' inspection stations in various industries of electronics, instruments and meters, cutting-tools and gripping devices, precision machine elements, precision hardware pieces, electronic components, plastic and rubber finished products, semiconductor components, punching pieces, socket connectors, die equipment, automobiles, machining operation, military industry, aerospace, etc. And colleges and universities, scientific research institutes, etc.
Features:
4-Axel Full-Auto-Type Video Measuring Meters (JVC-Series)
24-phase programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated workpieces, with higher measurement accuracy;
Imported NAVITAR lenses adopted and combined with Motor Zoom technique to realize full-auto zooming can arbitrarily transform focal variation ratio and it is unnecessary to carry out linear correction;
Having 4-axel CNC controlling system (X/Y/Z Full closed-loop servo control system and U-axel step-by-step control system).
3-Axel Full-Auto-Type Video Measuring Meters (JVC-Series S-Type)
4-phase programmable LED cold lights adopted for surface lamps can satisfy different measurement requirements;
The lens with fixed multiplying factor locationing and the software is adopted; It is unnecessary to carry out linear correction.
Having 3-axel CNC controlling system (X/Y/Z closed-loop servo control system).
Features:
4-Axel Full-Auto-Type Video Measuring Meters (JVC-Series)
24-phase programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated workpieces, with higher measurement accuracy;
Imported NAVITAR lenses adopted and combined with Motor Zoom technique to realize full-auto zooming can arbitrarily transform focal variation ratio and it is unnecessary to carry out linear correction;
Having 4-axel CNC controlling system (X/Y/Z Full closed-loop servo control system and U-axel step-by-step control system).
3-Axel Full-Auto-Type Video Measuring Meters (JVC-Series S-Type)
4-phase programmable LED cold lights adopted for surface lamps can satisfy different measurement requirements;
The lens with fixed multiplying factor locationing and the software is adopted; It is unnecessary to carry out linear correction.
Having 3-axel CNC controlling system (X/Y/Z closed-loop servo control system).
Model | JVC250 (JVC250S) | JVC300 (JVC250S) | JVC400 (JVC400S) |
Measuring range (mm) | 250×150×200 | 300×200×200 | 400×300×200 |
Size (including base) (mm) | 800×500×1650 | 800×500×1650 | 980×650×1650 |
Platform load capacity | 30Kg | ||
Operating mode | The mouse or a rocker | ||
Magnification | Optical Magnify Zoom: 0.7X-4.5X; Image Magnify Zoom: 28X-180X | ||
Resolution | 0.001mm | ||
Accuracy | (3+L/200)μm | ||
Repeatability | 2μm | ||
CCD | 430,000 pixel color CCD | ||
Measuring system | Automatic measuring software | ||
Applicable environment | Temperature: 20 degree ±5 degree Humidity: 45%-75% | ||
Computer configutation | |||
Power supply | (110V/220V)±10% 50Hz/60Hz |
Model | JVC250 (JVC250S) | JVC300 (JVC250S) | JVC400 (JVC400S) |
Measuring range (mm) | 250×150×200 | 300×200×200 | 400×300×200 |
Size (including base) (mm) | 800×500×1650 | 800×500×1650 | 980×650×1650 |
Platform load capacity | 30Kg | ||
Operating mode | The mouse or a rocker | ||
Magnification | Optical Magnify Zoom: 0.7X-4.5X; Image Magnify Zoom: 28X-180X | ||
Resolution | 0.001mm | ||
Accuracy | (3+L/200)μm | ||
Repeatability | 2μm | ||
CCD | 430,000 pixel color CCD | ||
Measuring system | Automatic measuring software | ||
Applicable environment | Temperature: 20 degree ±5 degree Humidity: 45%-75% | ||
Computer configutation | |||
Power supply | (110V/220V)±10% 50Hz/60Hz |
