JVB250
Sinpo

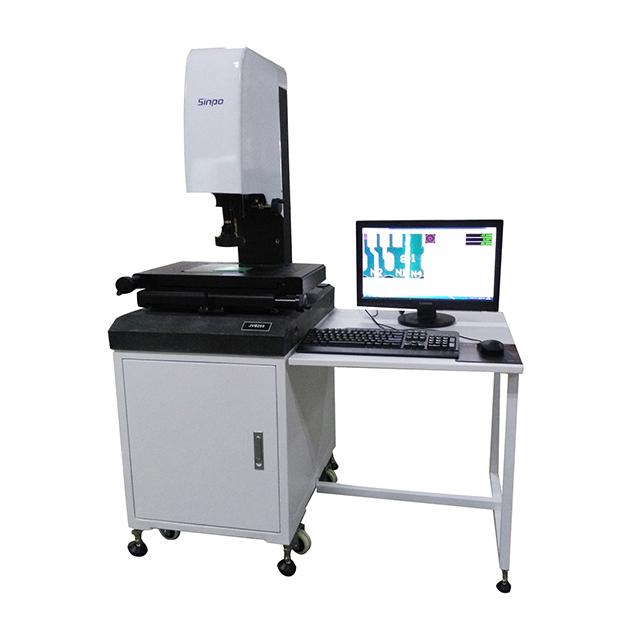

JVB/JVB-F Series of Manual Video Measuring Machine
Characteristics:
1. High-accuracy granite base with higher strength and stability; unique workbench design for JVB 150 with small size and attractive appearance.
2. Precise transmission to eliminate lead screw clearance to ensure comfortable rotation and gapless of hand wheel.
3. Lens: 0.7X-4.5X continuous magnification and positioned lens.
4. Height measurement available after installing optional linear scale on Z-axis.
5. Suitable for measuring mobile accessories, home appliances, machine parts, precision clamps, plastics, hardware, products related to computer, precision stamping parts, etc.
Technical Parameters:
| Category | Manual Video Measuring Machine / High-Accuracy Manual Video Measuring Machine | ||||
| Model number | JVB150/JVB150F | JVB250/JVB250F | JVB300/JVB300F | JVB400/JVB400F | |
| Travel(mm):X×Y×Z | 150×100×100 | 250×150×200 | 300×200×200 | 400×300×200 | |
| Overall dimension:(mm) | 480×460×620 | 600×700×870 | 600×700×870 | 910×985×960 | |
| Weight (kg) | 75 | 230 | 250 | 400 | |
| Load capacity (kg) | 10 | 30 | |||
| Measurement resolution | 1um | 0.5um | |||
| Measurement accuracy | X, Y accuracy: (3+L/200) um | ||||
| Measurement accuracy | JVB-F Series X, Y accuracy: (2.5+L/200) um, Z accuracy (5.0+L/200) um | ||||
| Repeatability | 2um | ||||
| Operating mode | Manual | ||||
| Magnification | Optical magnification: 0.7X-4.5X, image magnification: 28X-180X | ||||
| Software | SINPO-M | ||||
| CCD | 410,000 pixel, colorful CCD | ||||
| Power supply | 110-220V | ||||
| Environment | Temperature: 20±5ºC, humidity: 45%-75% | ||||
| Light source | Programmable LED cold light | Programmable 3-loop and 8-area LED cold light (optional 5-loop and 8-area) | |||
