Digital Multipurpose Toolmaker's Microscope
Digital Multipurpose Toolmaker's Microscope

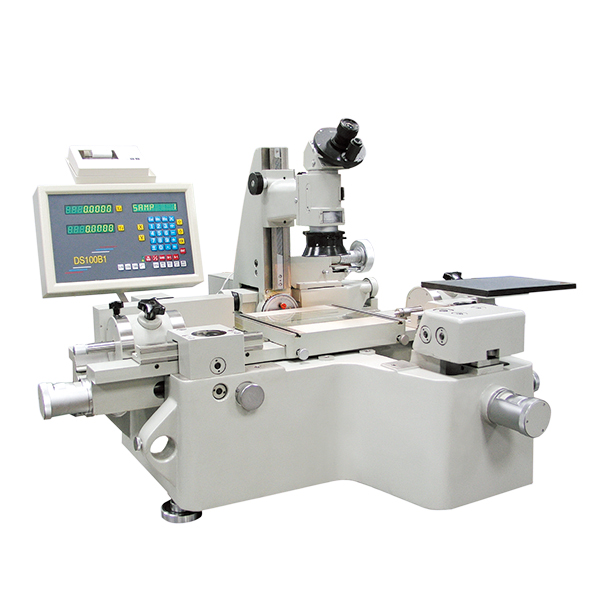

JX11B is equipped with multiple eyepieces, objectives, precision grating scale and a special DRO. The master microscope can be deflected left and right so it’s convenient to measure helical parts. It is widely used to measure size, angle, shape and position of various workpiece such as template, punching parts, cams, small (middle, large) diameter, pitch of screw thread, guide screw, worm shaft etc.
Digital Multipurpose Toolmaker's Microscope
PURPOSE
The digital universals toolmaker's microscope is the improved universals toolmaker's microscope, according to rectangular coordinate and polar coordinate adopting image and getting the diameter of measuring axis to measure all kinds of parts like varied cutter, gear, cam and internal and external thread's large, middle and small diameter, pitch and angle of teeth-shape etc. Optical porosimeter, center cradle, double-image and objective of contour are adopted in the instrument. Have all the necessary accessories and very universal. The instrument is indispensable to the metrogical lab of a factory and inspecting station of a workshop. Besides, adopting scale of optical grating act as measuring reference, digital display length and printed out, all of these make you feel easier and more benefit.
1. The microscope with various eyepiece and objection, broad view-field and imaging articulate
2. Adopting optical digital display technology, the measuring element is precise raster ruler measure length with digital display is direct and convenient
3. The microscope can yaw; It is suitable to measure felicity parts
4. No contact measuring is the basic way. Transmitted illumination and reflected illumination can measure internal and external contour
5. With optional accessories
Digital Multipurpose Toolmaker's Microscope
PURPOSE
The digital universals toolmaker's microscope is the improved universals toolmaker's microscope, according to rectangular coordinate and polar coordinate adopting image and getting the diameter of measuring axis to measure all kinds of parts like varied cutter, gear, cam and internal and external thread's large, middle and small diameter, pitch and angle of teeth-shape etc. Optical porosimeter, center cradle, double-image and objective of contour are adopted in the instrument. Have all the necessary accessories and very universal. The instrument is indispensable to the metrogical lab of a factory and inspecting station of a workshop. Besides, adopting scale of optical grating act as measuring reference, digital display length and printed out, all of these make you feel easier and more benefit.
1. The microscope with various eyepiece and objection, broad view-field and imaging articulate
2. Adopting optical digital display technology, the measuring element is precise raster ruler measure length with digital display is direct and convenient
3. The microscope can yaw; It is suitable to measure felicity parts
4. No contact measuring is the basic way. Transmitted illumination and reflected illumination can measure internal and external contour
5. With optional accessories
SPECIFICATION
Measuring range and correlative size
* X coordination 200 mm
* Y coordination 100 mm
* Graduation range of goniometer eyepiece 360°
* Graduation range of template eyepiece ± 7°
* Dividing range of optical dividing table 360°
* Dividing range of optical dividing head 360°
* Tilting range of microscope stand ± 12°
* Maximum diameter of optical dividing table 213mm
* Area of plane working table 260*270mm
* Maximum length between center cradles 700mm
* Maximum diameter of center cradle 100mm
* Maximum length between high center cradles 200mm
* Maximum diameter of high center cradle 250mm
* Rotating area of interference gap ± 90
Dimensions: 1300*1250*800mm
Weight: 450Kg
Optical feeler
* Swing area of vertical coordinate measuring
Rod ± 3°
* When a hole diameter >5mm, Maximum deep of the hole measured 15mm
* Stability of measurement <1mm
* Measuring pressure 0.1± 0.03N
* Measuring range 5~200mm. R-Template
Arc radius range mm Radius increment mm
R0.1~R2 0.1
R2.25~R5 0.25
R5~R11 0.5
R11~R20 1
R20~R25 2.5
R25~R50 5
Concentric circles are used when R0.1~R1.5
Scale value: * X, Y coordinate scale value 0.2mm
* Goniometer eyepiece scale value 1
* Template eyepiece scale value 10
* Optical dividing table scale value 30"
* Optical dividing head scale value 1
* Microscope stand scale value 30
Measuring accuracy(the difference in temperature between the measured piece and the instrument<0.5º C)
Longitudinal and vertical when use glass millimeter scales indicate with glass millimeter scale, accuracy of instrument is: (1+L/100) mm [L: Measuring length (mm)]
Magnification, working distance and diameter of view-field
Magnification of objective Total Magnification Working Distance mm View field mm
1* 10* 78 20
3* 30* 69 6.7
5* 50* 49 4
The data of microscope when use the double-image eyepiece
Magnification of objective 1* 10* 5*
Total Magnification 13.2* 38* 60*
Working Distance (mm) 15.2 5.3 3.3
View field (mm) 49.9 82.5 52.7
Coincidence Error of Image 1μ M
Main necessaries:
* Digital indicator * Objective: 1* 3* 5*
* V-support * Flat worktable
* Clamp plate unit * Measuring knife
* Pre-focus rod * Ring reflecting illumination lamp
* Center device * Double-image eyepiece
* Template eyepiece * Optical feeler
* Goniometer eyepiece * R-Template eyepiece
* Optical dividing table
Magnification of objective Total Magnification Working Distance View field
1* 78 20
3* 79 6.7
5* 48 4
SPECIFICATION
Measuring range and correlative size
* X coordination 200 mm
* Y coordination 100 mm
* Graduation range of goniometer eyepiece 360°
* Graduation range of template eyepiece ± 7°
* Dividing range of optical dividing table 360°
* Dividing range of optical dividing head 360°
* Tilting range of microscope stand ± 12°
* Maximum diameter of optical dividing table 213mm
* Area of plane working table 260*270mm
* Maximum length between center cradles 700mm
* Maximum diameter of center cradle 100mm
* Maximum length between high center cradles 200mm
* Maximum diameter of high center cradle 250mm
* Rotating area of interference gap ± 90
Dimensions: 1300*1250*800mm
Weight: 450Kg
Optical feeler
* Swing area of vertical coordinate measuring
Rod ± 3°
* When a hole diameter >5mm, Maximum deep of the hole measured 15mm
* Stability of measurement <1mm
* Measuring pressure 0.1± 0.03N
* Measuring range 5~200mm. R-Template
Arc radius range mm Radius increment mm
R0.1~R2 0.1
R2.25~R5 0.25
R5~R11 0.5
R11~R20 1
R20~R25 2.5
R25~R50 5
Concentric circles are used when R0.1~R1.5
Scale value: * X, Y coordinate scale value 0.2mm
* Goniometer eyepiece scale value 1
* Template eyepiece scale value 10
* Optical dividing table scale value 30"
* Optical dividing head scale value 1
* Microscope stand scale value 30
Measuring accuracy(the difference in temperature between the measured piece and the instrument<0.5º C)
Longitudinal and vertical when use glass millimeter scales indicate with glass millimeter scale, accuracy of instrument is: (1+L/100) mm [L: Measuring length (mm)]
Magnification, working distance and diameter of view-field
Magnification of objective Total Magnification Working Distance mm View field mm
1* 10* 78 20
3* 30* 69 6.7
5* 50* 49 4
The data of microscope when use the double-image eyepiece
Magnification of objective 1* 10* 5*
Total Magnification 13.2* 38* 60*
Working Distance (mm) 15.2 5.3 3.3
View field (mm) 49.9 82.5 52.7
Coincidence Error of Image 1μ M
Main necessaries:
* Digital indicator * Objective: 1* 3* 5*
* V-support * Flat worktable
* Clamp plate unit * Measuring knife
* Pre-focus rod * Ring reflecting illumination lamp
* Center device * Double-image eyepiece
* Template eyepiece * Optical feeler
* Goniometer eyepiece * R-Template eyepiece
* Optical dividing table
Magnification of objective Total Magnification Working Distance View field
1* 78 20
3* 79 6.7
5* 48 4
* High-center cradle * Measuring height equipment
Model | JX11B | |
X-coordinate(mm) | 200mm | |
Y-coordinate(mm) | 100mm | |
Resolution ration (mm) | X and Y coordinate:0.0002mm | |
Accuracy | (1+L/100)μm | |
Area of worktable | Square worktable(mm) 260×270 | |
Max height of stored workpiece on square worktable | 140mm | |
Microscope upright column | Angle tilting range | ±12° |
Angle tilting value | 30′ | |
Circular dividing head | Graduated range | 0°~360° |
Scale unit | 1′ | |
Tailstock rack | Max gripped diameter | φ100mm |
Max gripped length | 700mm | |
Higher Tailstock | Max gripped diameter | φ250mm |
Max gripped length | 200mm | |
Optical position indicator | Min detective aperture | φ5mm |
Max detective depth | 15mm | |
Metering force | 0.1N | |
Locating stability | 0.001mm | |
Limit error gauged for head diameter | 0.0005mm | |
Objective magnification | 1X 3X 5X | |
Gross magnifying power | 10X 30X 50X | |
Object working distance | 79mm 69mm 49mm | |
Object visual field | 20mm 6.7mm 4mm | |
Double Objective magnification | 1X 3X 5X | |
Double Gross magnifying power | 14.7X 42X 65X | |
Double Object working distance | 36mm 64mm 48mm | |
Double Object visual field | 13mm 4.6mm 2.9mm | |
Overall sizes (mm) | 1300×1250×800 | |
Weight | 450kg | |
Max load | 40kg |
* High-center cradle * Measuring height equipment
Model | JX11B | |
X-coordinate(mm) | 200mm | |
Y-coordinate(mm) | 100mm | |
Resolution ration (mm) | X and Y coordinate:0.0002mm | |
Accuracy | (1+L/100)μm | |
Area of worktable | Square worktable(mm) 260×270 | |
Max height of stored workpiece on square worktable | 140mm | |
Microscope upright column | Angle tilting range | ±12° |
Angle tilting value | 30′ | |
Circular dividing head | Graduated range | 0°~360° |
Scale unit | 1′ | |
Tailstock rack | Max gripped diameter | φ100mm |
Max gripped length | 700mm | |
Higher Tailstock | Max gripped diameter | φ250mm |
Max gripped length | 200mm | |
Optical position indicator | Min detective aperture | φ5mm |
Max detective depth | 15mm | |
Metering force | 0.1N | |
Locating stability | 0.001mm | |
Limit error gauged for head diameter | 0.0005mm | |
Objective magnification | 1X 3X 5X | |
Gross magnifying power | 10X 30X 50X | |
Object working distance | 79mm 69mm 49mm | |
Object visual field | 20mm 6.7mm 4mm | |
Double Objective magnification | 1X 3X 5X | |
Double Gross magnifying power | 14.7X 42X 65X | |
Double Object working distance | 36mm 64mm 48mm | |
Double Object visual field | 13mm 4.6mm 2.9mm | |
Overall sizes (mm) | 1300×1250×800 | |
Weight | 450kg | |
Max load | 40kg |
