Computer Multipurpose Toolmaker's Microscope
Computer Multipurpose Toolmaker's Microscope

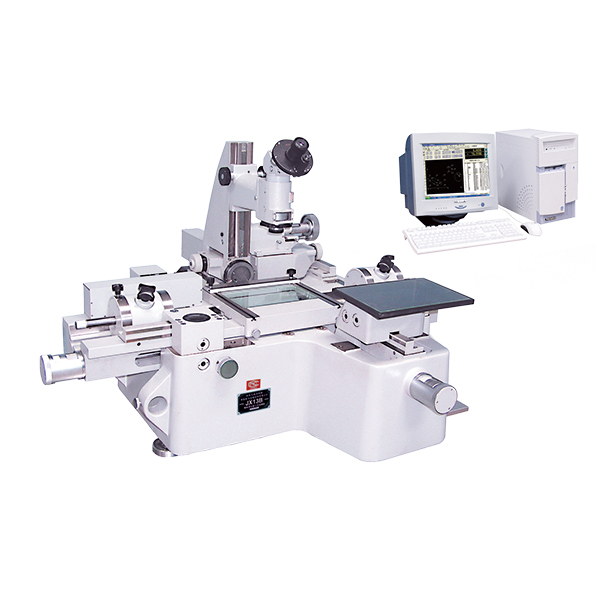

It provides various eyepieces and objectives to get a clear image and large view field. Adopts advanced computer processing technology, realize the real time input of collected signals by linear scale measuring system into computer, and then processed by powerful 2-D measuring software to finish different complicated measurement works.
Computer Multipurpose Toolmaker's Microscope
PURPOSE
JX13B is based on JX11B and it adopt computer to process measuring data. It equipped two beam of light interferential stripe measuring means which makes capability of system get large mend, and the software's capability of combination and exploitation strengthen the capability of system, can fulfill user's demand.
The tool- maker's microscope is a multi-functional measuring apparatus and widely used in machine manufacturing industry, electron product industry, aeronautic industry, and various measurements. It can be used to measure the size, shape, angle and position of any components within measuring range.
1. Main body equipped with manifold objective lens and eyepiece. It has a large view field and clear image.
2. It adopt digital readout system, measured with sophisticated linear scale.
3. It adopt advanced computer technique, put length signal which collected by digital readout system into computer and processed by appropriative software (CD202), then print result or image accurately and efficiently.
4. Main body can sway left and right which best suits the measurement of helix parts.
5. It uses non-contact measurement as basic means, adopts contour illumination and surface illumination, can test parts which have a complex geometrical shape.
6. It has manifold accessories and wide use.
Computer Multipurpose Toolmaker's Microscope
PURPOSE
JX13B is based on JX11B and it adopt computer to process measuring data. It equipped two beam of light interferential stripe measuring means which makes capability of system get large mend, and the software's capability of combination and exploitation strengthen the capability of system, can fulfill user's demand.
The tool- maker's microscope is a multi-functional measuring apparatus and widely used in machine manufacturing industry, electron product industry, aeronautic industry, and various measurements. It can be used to measure the size, shape, angle and position of any components within measuring range.
1. Main body equipped with manifold objective lens and eyepiece. It has a large view field and clear image.
2. It adopt digital readout system, measured with sophisticated linear scale.
3. It adopt advanced computer technique, put length signal which collected by digital readout system into computer and processed by appropriative software (CD202), then print result or image accurately and efficiently.
4. Main body can sway left and right which best suits the measurement of helix parts.
5. It uses non-contact measurement as basic means, adopts contour illumination and surface illumination, can test parts which have a complex geometrical shape.
6. It has manifold accessories and wide use.
SPECIFICATION
The typical measuring objects include:
Measure the shape of various kinds of make-up components such as the template, the formed cutter, the milling cutter, punching die, and the cam.
1. Measure the pitch of diameter, external diameter, internal diameter, pitch and thread angle of external thread (such as thread gauge, guide screw and worm).
2. Measure the helical pitch, gear form and jaw-shaped angle of the gear hobbler.
3. Measure the positional precision of circuit board, drill plate or pore plate and the form and position error of the key slot symmetry.
SPECIFICATION
The typical measuring objects include:
Measure the shape of various kinds of make-up components such as the template, the formed cutter, the milling cutter, punching die, and the cam.
1. Measure the pitch of diameter, external diameter, internal diameter, pitch and thread angle of external thread (such as thread gauge, guide screw and worm).
2. Measure the helical pitch, gear form and jaw-shaped angle of the gear hobbler.
3. Measure the positional precision of circuit board, drill plate or pore plate and the form and position error of the key slot symmetry.
Technical Parameter:
Measuring range:
X coordinate: 200mm
Y coordinate: 100mm
Angle graduation range of testing angle's eyepiece: 360°
Angle graduation range of screw thread contour's eyepiece: ± 7°
Angle graduation range of circle worktable: 0° ~360°
Angle graduation range of circle dividing head: 0° ~360°
Declining range of main body's column: ± 12°
Diameter of circle worktable: Φ 213mm
Size of plane worktable (mm): 260*270
Maximum length of thimble frame: 700mm
Maximum diameter of thimble frame: Φ 100mm
Maximum length of high thimble support: 200mm
Maximum diameter of high thimble support: Φ 250mm
Rotating range of interferential crack: ± 90°
Graduation value:
Angle graduation value of X, Y: 0.0002mm
Angle graduation value of testing angle's eyepiece: 1'
Angle graduation value of contour's eyepiece: 10'
Angle graduation value of circle worktable: 30"
Angle graduation value of circle dividing head: 1'
Declining angle graduation value of main body's column: 30'
Accuracy (temperature difference between instrument and workpiece less than 0.5º C, indoor temperature 20º C± 1º C):
(1+L/100) μ M, L-length of workpiece, calculated with mm Magnification of objective, working distance, diameter of view field
Magnification of objective Total magnification Working distance (mm) Diameter of view field (mm)
1* 10* 79 20
3* 30* 69 6.7
5* 50* 49 4
Main technical data of optical localizer: Vertical sway range of testing rod: ± 3°
Maximum depth when diameter of bore large than 5mm: 15mm
Variable of location: <1μ M
Measuring force (N): 0.1± 0.03
Measuring range (mm): 5~200
Dimensions: 1300*1250*800
Weight of main body: 450kg
Model | JX13B | |
X-coordinate(mm) | 200mm | |
Y-coordinate(mm) | 100mm | |
Resolution ration (mm) | X and Y coordinate:0.0002mm | |
Accuracy | (1+L/100)μm | |
Area of worktable | Square worktable(mm) 260×270 | |
Max height of stored workpiece on square worktable | 140mm | |
Microscope upright column | Angle tilting range | ±12° |
Angle tilting value | 30′ | |
Circular dividing head | Graduated range | 0°~360° |
Scale unit | 1′ | |
Tailstock rack | Max gripped diameter | φ100mm |
Max gripped length | 700mm | |
Higher Tailstock | Max gripped diameter | φ250mm |
Max gripped length | 200mm | |
Optical position indicator | Min detective aperture | φ5mm |
Max detective depth | 15mm | |
Metering force | 0.1N | |
Locating stability | 0.001mm | |
Limit error gauged for head diameter | 0.0005mm | |
Objective magnification | 1X 3X 5X | |
Gross magnifying power | 10X 30X 50X | |
Object working distance | 79mm 69mm 49mm | |
Object visual field | 20mm 6.7mm 4mm | |
Double Objective magnification | 1X 3X 5X | |
Double Gross magnifying power | 14.7X 42X 65X | |
Double Object working distance | 36mm 64mm 48mm | |
Double Object visual field | 13mm 4.6mm 2.9mm | |
Overall sizes (mm) | 1300×1250×800 | |
Weight | 450kg | |
Max load | 40kg |
Technical Parameter:
Measuring range:
X coordinate: 200mm
Y coordinate: 100mm
Angle graduation range of testing angle's eyepiece: 360°
Angle graduation range of screw thread contour's eyepiece: ± 7°
Angle graduation range of circle worktable: 0° ~360°
Angle graduation range of circle dividing head: 0° ~360°
Declining range of main body's column: ± 12°
Diameter of circle worktable: Φ 213mm
Size of plane worktable (mm): 260*270
Maximum length of thimble frame: 700mm
Maximum diameter of thimble frame: Φ 100mm
Maximum length of high thimble support: 200mm
Maximum diameter of high thimble support: Φ 250mm
Rotating range of interferential crack: ± 90°
Graduation value:
Angle graduation value of X, Y: 0.0002mm
Angle graduation value of testing angle's eyepiece: 1'
Angle graduation value of contour's eyepiece: 10'
Angle graduation value of circle worktable: 30"
Angle graduation value of circle dividing head: 1'
Declining angle graduation value of main body's column: 30'
Accuracy (temperature difference between instrument and workpiece less than 0.5º C, indoor temperature 20º C± 1º C):
(1+L/100) μ M, L-length of workpiece, calculated with mm Magnification of objective, working distance, diameter of view field
Magnification of objective Total magnification Working distance (mm) Diameter of view field (mm)
1* 10* 79 20
3* 30* 69 6.7
5* 50* 49 4
Main technical data of optical localizer: Vertical sway range of testing rod: ± 3°
Maximum depth when diameter of bore large than 5mm: 15mm
Variable of location: <1μ M
Measuring force (N): 0.1± 0.03
Measuring range (mm): 5~200
Dimensions: 1300*1250*800
Weight of main body: 450kg
Model | JX13B | |
X-coordinate(mm) | 200mm | |
Y-coordinate(mm) | 100mm | |
Resolution ration (mm) | X and Y coordinate:0.0002mm | |
Accuracy | (1+L/100)μm | |
Area of worktable | Square worktable(mm) 260×270 | |
Max height of stored workpiece on square worktable | 140mm | |
Microscope upright column | Angle tilting range | ±12° |
Angle tilting value | 30′ | |
Circular dividing head | Graduated range | 0°~360° |
Scale unit | 1′ | |
Tailstock rack | Max gripped diameter | φ100mm |
Max gripped length | 700mm | |
Higher Tailstock | Max gripped diameter | φ250mm |
Max gripped length | 200mm | |
Optical position indicator | Min detective aperture | φ5mm |
Max detective depth | 15mm | |
Metering force | 0.1N | |
Locating stability | 0.001mm | |
Limit error gauged for head diameter | 0.0005mm | |
Objective magnification | 1X 3X 5X | |
Gross magnifying power | 10X 30X 50X | |
Object working distance | 79mm 69mm 49mm | |
Object visual field | 20mm 6.7mm 4mm | |
Double Objective magnification | 1X 3X 5X | |
Double Gross magnifying power | 14.7X 42X 65X | |
Double Object working distance | 36mm 64mm 48mm | |
Double Object visual field | 13mm 4.6mm 2.9mm | |
Overall sizes (mm) | 1300×1250×800 | |
Weight | 450kg | |
Max load | 40kg |
