Digital Scale Toolmaker's Microscope
Digital Scale Toolmaker's Microscope
JX14B/14B1 Adopts photoelectric display technology, takes high precision grating scale as measuring units for X and Y axis, Digital Read Out shows data directly, convenient to do measurement. It provides various eyepieces and objectives to get a clear image and large view field. Main microscope can deflect left and right, suitable for the measurement of spiral parts.
echnical Parameters
Worktable
Range of measurement
X-coordinate: 150mm Y-coordinate: 75mm
Resolution ratio: X- and Y-coordinate measurement 0.001mm
Accuracy of the instrument: (2+L/50)μ M, of which, L = measured length ( unit: Mm)
Diameter of the circular worktable:
Φ 190mm(glass) Φ 280mm(metal)
Angle tilting range: ± 12°
Tailstock
Maximum clamping diameter: Φ 70mm
Maximum clamping length: 190mm
Objective
Objective magnification Gross magnifying power Objective working Distance (mm) Visual field (mm)
1× 10× 79 φ 20
3× 30× 69 φ 6.7
5× 50× 49 φ 4
Overall sizes: 720× 460× 600
Weight: 100 kg
Model | JX14B | JX14B1 | |
X-coordinate(mm) | 150mm | 150mm | |
Y-coordinate(mm) | 75mm | 75mm | |
Resolution ration (mm) | X and Y coordinate: 0.001mm | X and Y coordinate: 0.001mm | |
Accuracy | (2+L/50)μm | (2+L/50)μm | |
Angular calibrated range of the circular worktable | 0°~360° | 0°~360° | |
Angle resolution ratio of circular worktable | 3′ | 1′ | |
Diameter of circular worktable | φ190mm (glass) φ280mm(metal) | φ190mm (glass) φ280mm(metal) | |
Microscope upright column | Sloping scope | ±12° | ±12° |
Calibrated value of slope angle | 30′ | 30′ | |
Template eyepiece | Calibrated range | ±7° | ±7° |
Angular calibrated value | 10′ | 10′ | |
Tailstock rack | Max clamping diameter | φ70mm | φ70mm |
Max clamping length | 190mm | 190mm | |
Optical detector | Min detective hole diameter | φ5mm | φ5mm |
Max detective depth | 15mm | 15mm | |
Objective magnification | 1X 3X 5X | 1X 3X 5X | |
Gross magnifying power | 10X 30X 50X | 10X 30X 50X | |
Object working distance | 79mm 69mm 49mm | 79mm 69mm 49mm | |
Object visual field | 20mm 6.7mm 4mm | 20mm 6.7mm 4mm | |
Overall sizes (mm) | 720×460×600 | 720×460×600 | |
Weight | 100kg | 100kg | |
Max load | 20kg | 20kg |
echnical Parameters
Worktable
Range of measurement
X-coordinate: 150mm Y-coordinate: 75mm
Resolution ratio: X- and Y-coordinate measurement 0.001mm
Accuracy of the instrument: (2+L/50)μ M, of which, L = measured length ( unit: Mm)
Diameter of the circular worktable:
Φ 190mm(glass) Φ 280mm(metal)
Angle tilting range: ± 12°
Tailstock
Maximum clamping diameter: Φ 70mm
Maximum clamping length: 190mm
Objective
Objective magnification Gross magnifying power Objective working Distance (mm) Visual field (mm)
1× 10× 79 φ 20
3× 30× 69 φ 6.7
5× 50× 49 φ 4
Overall sizes: 720× 460× 600
Weight: 100 kg
Model | JX14B | JX14B1 | |
X-coordinate(mm) | 150mm | 150mm | |
Y-coordinate(mm) | 75mm | 75mm | |
Resolution ration (mm) | X and Y coordinate: 0.001mm | X and Y coordinate: 0.001mm | |
Accuracy | (2+L/50)μm | (2+L/50)μm | |
Angular calibrated range of the circular worktable | 0°~360° | 0°~360° | |
Angle resolution ratio of circular worktable | 3′ | 1′ | |
Diameter of circular worktable | φ190mm (glass) φ280mm(metal) | φ190mm (glass) φ280mm(metal) | |
Microscope upright column | Sloping scope | ±12° | ±12° |
Calibrated value of slope angle | 30′ | 30′ | |
Template eyepiece | Calibrated range | ±7° | ±7° |
Angular calibrated value | 10′ | 10′ | |
Tailstock rack | Max clamping diameter | φ70mm | φ70mm |
Max clamping length | 190mm | 190mm | |
Optical detector | Min detective hole diameter | φ5mm | φ5mm |
Max detective depth | 15mm | 15mm | |
Objective magnification | 1X 3X 5X | 1X 3X 5X | |
Gross magnifying power | 10X 30X 50X | 10X 30X 50X | |
Object working distance | 79mm 69mm 49mm | 79mm 69mm 49mm | |
Object visual field | 20mm 6.7mm 4mm | 20mm 6.7mm 4mm | |
Overall sizes (mm) | 720×460×600 | 720×460×600 | |
Weight | 100kg | 100kg | |
Max load | 20kg | 20kg |
Characteristics
JX14BThe photoelectrical technique is adopted, with a precision grating rule as a measurer for X- and Y-axle as a measurer, with readings direct-viewing and testing convenient.
JX14B1The photoelectrical technique is adopted, with a precision grating rule as a measuring element for X- and Y-axle and a numbering device as a measuring element for the rotary worktable, to realize the length and angle full-display; With readings direct-viewing and testing convenient.
With multiple eyepieces and objectives, the main microscope has a large scope of view field with clear image formation.
The main microscope can oscillate left and right, suitable for the measurement for spiral parts.
LED-illuminating lighting is adopted for transmission and reflecting illumination, with low heating power and long life.
High-speed and micro-motion devices are adopted, which can be switched over quickly.
The tailstock rack is installed to measure the axel-type parts.
Multiple accessories are provided, with extensive uses.
Characteristics
JX14BThe photoelectrical technique is adopted, with a precision grating rule as a measurer for X- and Y-axle as a measurer, with readings direct-viewing and testing convenient.
JX14B1The photoelectrical technique is adopted, with a precision grating rule as a measuring element for X- and Y-axle and a numbering device as a measuring element for the rotary worktable, to realize the length and angle full-display; With readings direct-viewing and testing convenient.
With multiple eyepieces and objectives, the main microscope has a large scope of view field with clear image formation.
The main microscope can oscillate left and right, suitable for the measurement for spiral parts.
LED-illuminating lighting is adopted for transmission and reflecting illumination, with low heating power and long life.
High-speed and micro-motion devices are adopted, which can be switched over quickly.
The tailstock rack is installed to measure the axel-type parts.
Multiple accessories are provided, with extensive uses.
SPECIFICATION
The main microscope is equipped with many kinds of eyepieces and objectives with wide filed of view and high clear imaging.
It adopts photoelectric display techniques and uses precision optical grating scale as measuring components, the measuring length is shown with numbers, thus it is convenient for users to get data directly.
The main microscope can sway left and right, which is suit for measure helical components.
It is equipped with center cradle, so it also can measure axiform workpieces.

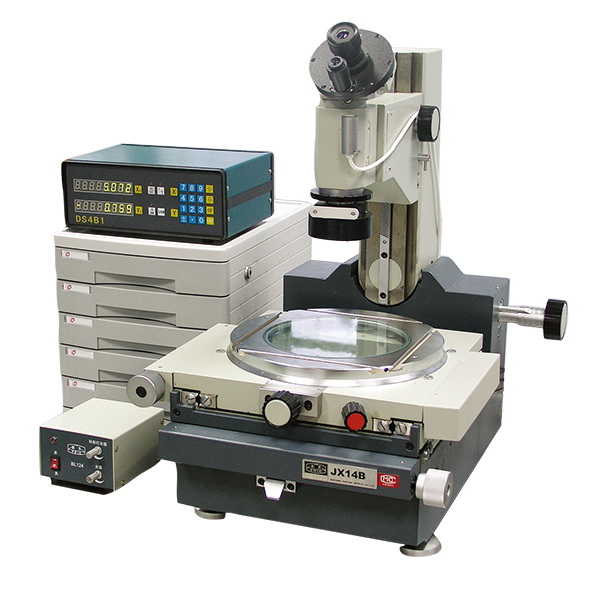

JX14B Digital Large Scale Toolmaker's Microscope
JX14B1 Digital Large Scale Toolmaker's Microscope
SPECIFICATION
The main microscope is equipped with many kinds of eyepieces and objectives with wide filed of view and high clear imaging.
It adopts photoelectric display techniques and uses precision optical grating scale as measuring components, the measuring length is shown with numbers, thus it is convenient for users to get data directly.
The main microscope can sway left and right, which is suit for measure helical components.
It is equipped with center cradle, so it also can measure axiform workpieces.
JX14B Digital Large Scale Toolmaker's Microscope
JX14B1 Digital Large Scale Toolmaker's Microscope
